Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
ELEGIR LA VARIANTE DEL PRODUCTO
€ 130.00EUR

Envío / IVA se calculan a check out y depende de la dirección de entrega

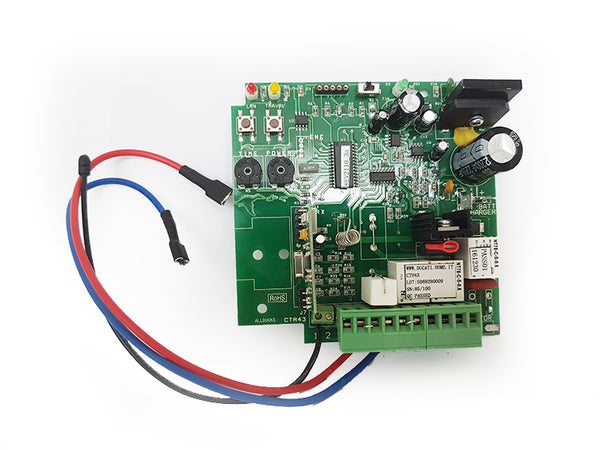

Electronic board for 12V or 24V sliding gate openers, featuring SOFT STOP.
Compatible with SLIDE and Tower gate openers.
Stops on magnetic limits detection.


Compatible with  24V versions of Sliding gate opener model

  • SLIDE series: SLIDE 843 / SLIDE 1043  (24V versions only)
  • TOWER series: TWB800 / TWB1000 / TWA800 / TWB1000

ACCESSORIES COMPATIBILITY:

  • DUCATI's rolling coded remote controls
  • key switch or and any switch button / loop detector with NO contact (normally open contact)
  • 12V photocells NC contact
  • 12/24V 10W max bulb blinker
  • External aerial antenna
  • CMBAT  ( external module to connect emergency back-up battery / solar panel
  • 12V battery: warning requires CMBAT +  12V battery  ( note: in case of  main ac power supply and   power by back up battery, the 24V motor versions will work at  slow speed only)
  • 12 V min. 210W photovoltaic solar panel (12V motors only)
  • GSM 996 module to operate your gate by mobile phone
  • GSM INTERCOM 1096 for both intercom communication directly on your mobile phone and to operate your gate by mobile phone)

MOTOR COMPATIBILITY:

DUCO SAFE technology Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200

SOFT STOP

  • The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
  • This prevent from usury and ensure long life to your opener and door.
  • This function prevents the door banging closing

ASR (Automatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.


  • Features double speed with SOFT STOP.  This feature is very important  to guarantee an optimal motion control and a gentle stop. Ideal for very heavy or highly sliding gates, controls the force of inertia of the gate, preventing kickback.
  • Stand-buy consumption: 0,014A only.
  • Can work independently in case of power failure: by adding the external battery charger module CMBAT* and a 2x 12V battery*. (* optionals)
  • Can  be also powered by solar panel by adding  1 module CMBAT* + 2x 12A 12V batteries in series connected (BAT1212)+ 1 solar panel 24V min. 20W*(SOLAR2024)
  • Features 2 working mode options: Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open & push to close)
  • Easy self-storing of the remotes controls by pushing one button
  • Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
  • Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing only) this feature can be controlled by remote control or switch button
  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request.
  • Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

CTH43V (12/24V) ELECTRONIC BOARD TECHNICAL DATA

Fuente de alimentación principal de CA
  230V (110V on demand
System Operating Voltage
24V or 12V
Backup-up battery & power supply
√ with CMBAT
Solar module power supply
√ (12V motor version only)
Stand-by consumption
0.012A
Protection fuse on board
√
Transformer protection fuse
0.8A T ( 1.2A T)
Toroidal transformer wattage
105W
Radio receiver
2 channels rolling code
Radio codes storage capacity
10
Radio transmission protocol
DUCATI rolling code 433MHz
Radio remote codes learning
self-learning
On board antenna
Input external antenna
Automatic closing pause time
√ adjustable by trimmer 1-100 sec
DUCOSAFE Safety obstacle detection system (entrapment protection)
Motor power adjustment by potentiometer
ARS automatic reverse system on obstacle detection
SOFT STOP Double speed with soft stop
FAST extra speed motor
Electric Limits
√ magnetic
Safety photocells input
√ NC contact
START operating cycle (full cycle) contact
√  NO contact
START operating cycle (pedestrian cycle) contact

√ NO contact
Blinker output
12V/24V 10W max
Battery charger
not on board  (requires CMBAT)
Battery input
not on board  (
requires additional CMBAT)
output for optional additional back-up battery charge management & module CMBAT
Low battery indication by flashing light blinker
-
Solar panel input *
compatible with 12V motors only (requires additional CMBAT)
LED to indicate power ON

CLICK HERE to download the SLIDE  instruction manual

CLICK HERE To watch the SLIDE collection product Video

Electronic board CTH43V Wiring diagram:

cth43V/24

CMBAT 2.0 (New version!)

CMBAT 2.0 (New version!)

Accesorios

  • Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel
  • Compatible with electronic board model CTH42, CTH41, ( swing gate opener) & CTH43 ( sliding gate opener)
€ 32.00EUR
Más información

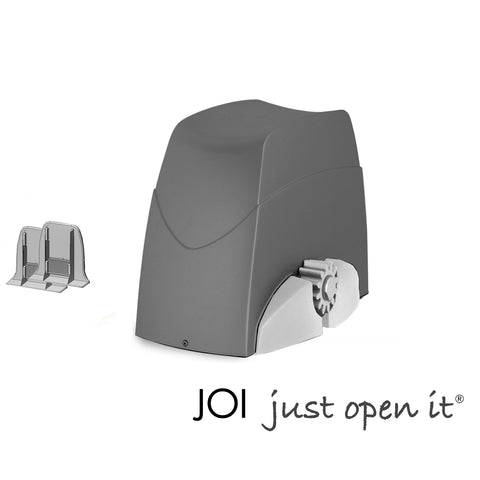

SLIDE 843 MC Motor
