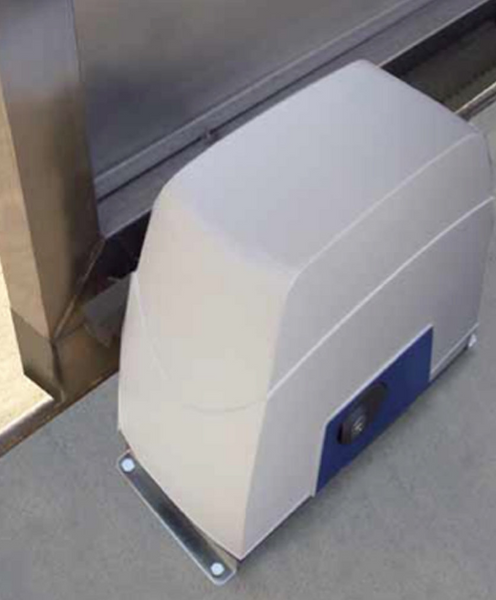

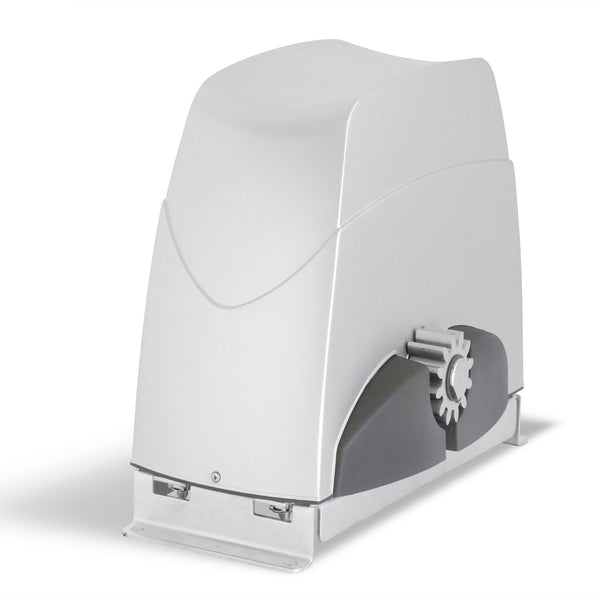

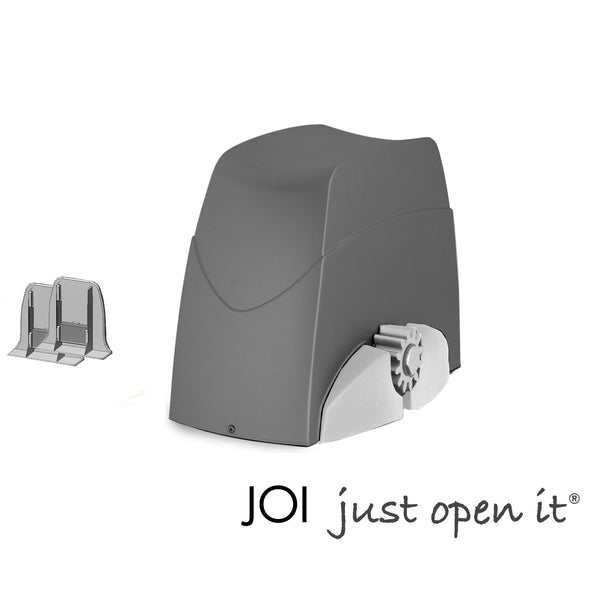

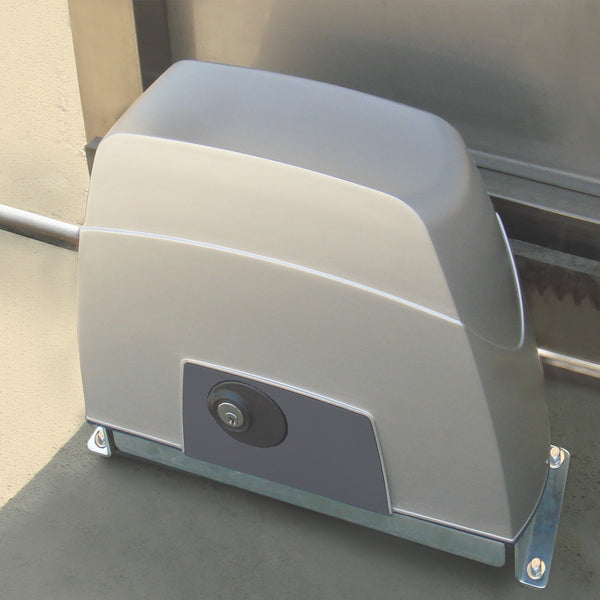

SLIDE 843 MC Motor

• 1x SLIDE 843MC 24V DC motor case with toroidal transformer, electronic board CTH43V/24 featuring double speed, soft stop & on board radio receiver ( rolling coded)

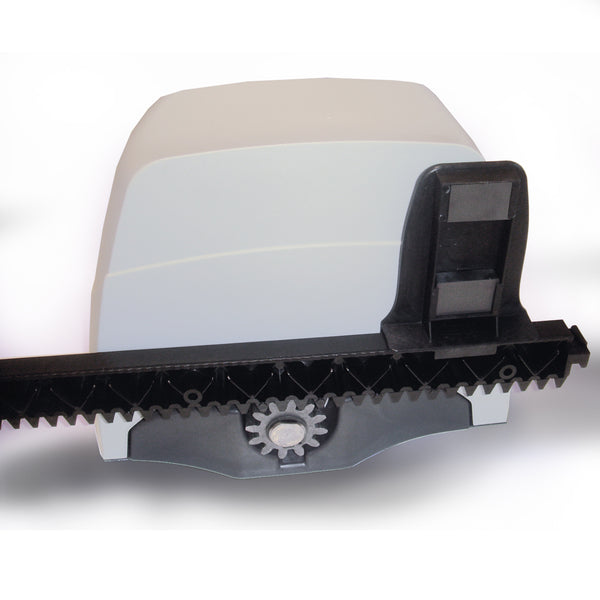

• 2 x Magnetic limits
• 1 pair of keys for emergency manual unlocking

SOFT STOP

• The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
• This prevent from usury and ensure long life to your opener and door.
• This function prevents the door banging closing

DUCO SAFE technology

Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200

ASR (Autimatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.

• Ideal for a safe, quick and easy  installation: the system works in DC current and is electrocution risk-free.
• Features double speed with SOFT STOP.  This feature is very important  to guarantee an optimal motion control and a gentle stop. Ideal for very heavy or highly sliding gates, controls the force of inertia of the gate, preventing kickback.
• Can work independently in case of power failure: by adding the external battery charger module CMBAT* and a 12V battery*. (* = are not included in this package and must be added to the kit package)
• Motor housing  with integrated battery housing compartment: can fit any 12V battery up to maximal dimension : 9cm x 15cm x 6,5cm
• 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
• Easy  self-storing  of the remotes controls by pushing one button
• Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.
• Pedestrian opening (partial opening of one the gate  to allow  pedestrian crossing only) this feature can be controlled by remote control  or wired command
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
• The gate is automatically locked in closed position (irreversible system).

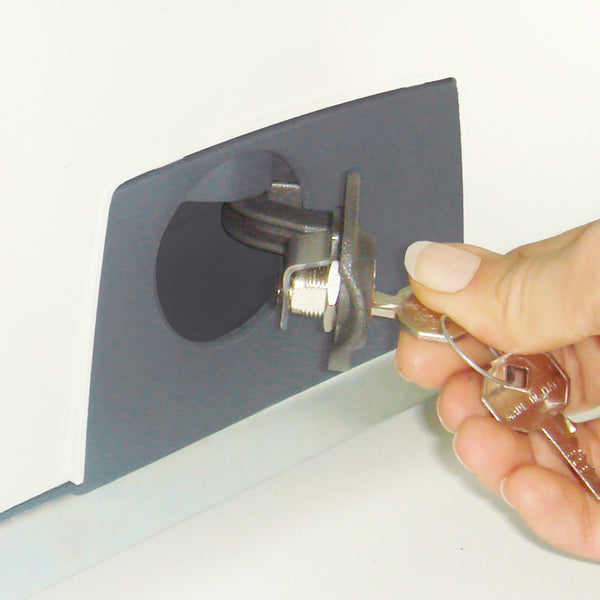

• Manual release system by key
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

SLIDE 843 M 24V Motor Technical Data

CTH43V/24  ELECTRONIC BOARD TECHNICAL DATA

 * By adding the extra module CMBAT   the opener can be powered by solar panel & back-up batteries. Requires 2x min.12A 12V batteries + 24V min. 20W solar panel. Warning : batteries requires to be  stored in separate case (not included)

CLICK HERE to download the SLIDE instruction manual

CLICK HERE To watch the SLIDE collection product Video

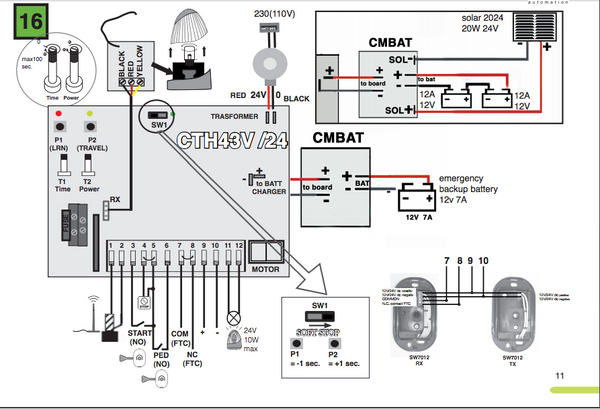

Electronic board CTH43V/24 Wiring diagram:
