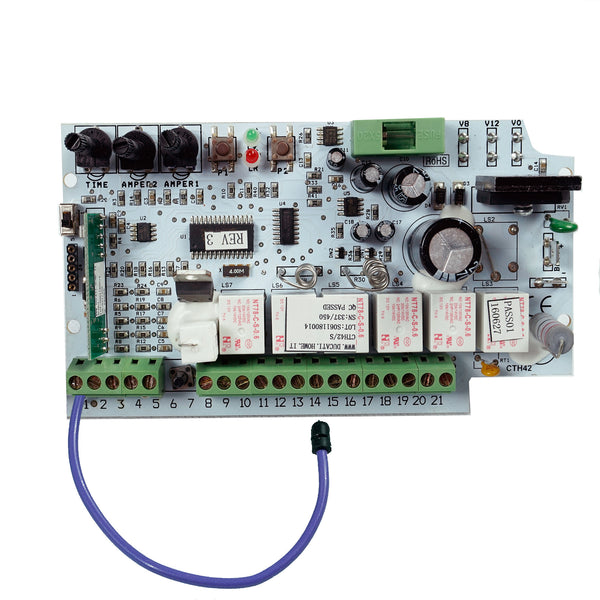

Electronic board for double or single swing gate openers

The CTH42 , very appreciated by our customers for its ease of use and good level of functions availables is ideal for those who want a gate opener control board that offers several advanced features such as pedestrian opening, emergency battery compatibility, motor power adjustment, pause time setting before automatic closing

  • Featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family
  • DUCATI's rolling coded radio transmission ( on board radio receive & antenna cable) with it's unique changing code, give you peace of mind that your family and property is safe and secure.

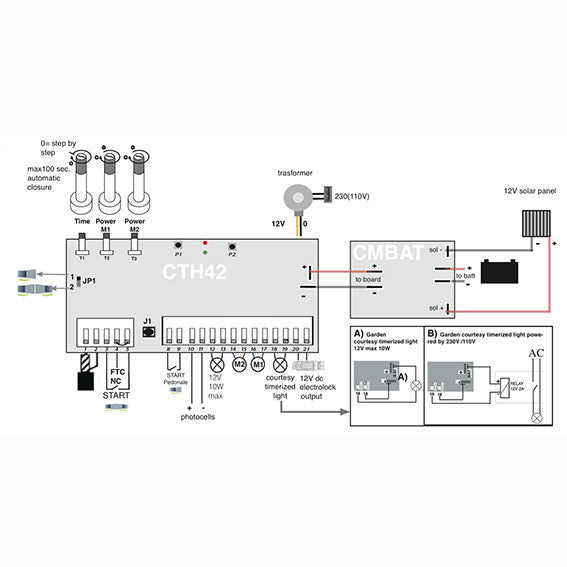

MOTOR COMPATIBILITY:

  • compatible with all DUCATI's 12V actuators

ACCESSORIES COMPATIBILITY:

  • DUCATI's rolling coded remote controls,
  • keyswitch or and  any switch button / loop detector with NO contact (normally open contact)
  • 12V photocells NC contact
  • 12V 10W max bulb blinker
  • CMBAT battery charger module
  • 12V emergency back-up battery (Warning: CTH42 requires CMBAT module to be powered by back-up battery)
  • external aerial antenna
  • 12V ac Electric-lock ( Warning: only and in case the Electronic board  is powered by back-up battery, the electric lock power supply output becomes 12Vdc, it is therefore necessary that the electric lock is equipped with a booster that transforms the 12Vdc output voltage In 12Vac)

  • Features 2 working mode options: Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open & push to close)
  • Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
  • Easy  self-storing  of the remotes controls by pushing one button
  • Output for temporized external courtesy light that turns on as the gate starts a working cycle. It's possible to connect a 12V max 10W lamp as well as a 230/110V lamp connected trough a power relay ( not supplied).
  • Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.
  • Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
  • Output for a 12V ac Electric-lock ( Warning: only and in case the Electronic board is powered by back-up battery, the electric lock power supply output becomes 12Vdc, it is therefore necessary that the electric lock is equipped with a booster that transforms the 12Vdc output voltage In 12Vac)
  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
  • Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid

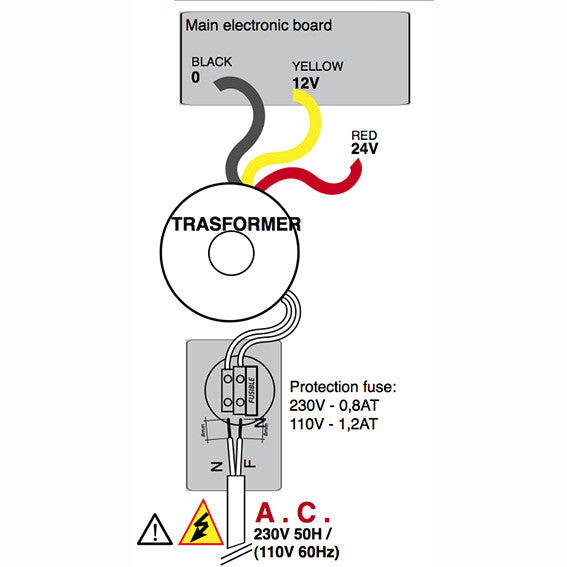

  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

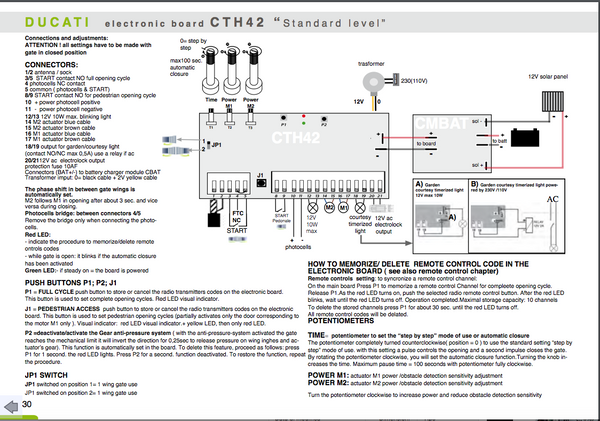

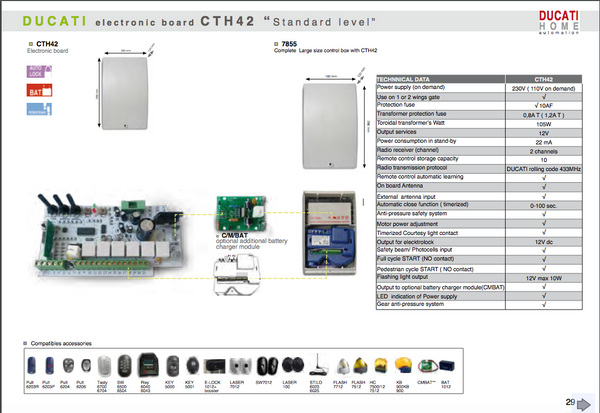

CTH42 ELECTRONIC BOARD TECHNICAL DATA


Main power supply
 12V
protection fuse √10AF
use on single or double wing gate
output services 12V
stand-by power consumption 12mA
radio receiver 2 channels ( 1 for full cycle opening, 1 for pedestrian access)
remote controls channels storage capacity 10 codes
radio transmission protocol DUCATI rolling code
radio frequency 433,92MHz
remote control automatic learning
On board antenna
external aerial antenna input
automatic closure working mode √ with adjustable pause time up to 100 sec.
step by step working
step by step working mode (1 pulse to open; 1 pulse to close
√
motor power adjustment √ by turning potentiometer clockwise you increase motor power and decrease obstacle detection sensibility
Obstacle detection safety system (DUCO SAFE). In case an obstacle is detected during the maneuver,the gate will immediately stop preventing injuries.
√ by amperometrical obstacle detection
In compliance with EU-CE norms.
EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
timerized ( 60 sec.) courtesy light output √ max 10W 12V lamp or 230/110V lamp trough a power relay ( not supplied)
flashing light output √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output √ 12V ac (Warning: only and in case the Electronic board is powered by back-up battery, the electric lock power supply output becomes 12Vdc, it is therefore necessary that the electric lock is equipped with a booster that transforms the 12Vdc output voltage In 12Vac)
safety beam-photocells input (NC contact) √ NC normally closed contact.
full cycle START input (NO contact)
pedestrian cycle START input (NO contact)
output for optional additional back-up battery charge management & module CMBAT. Warning: do never connect a 12V back-up battery directly to the control board CTH42: it could cause irreversible damages. The module CMBAT is mandatory in case of back-up battery power supply.

 CTH42 video installation  INSTALLATION VIDEO

CTH42 to view installation manual

Opiniones de clientes

Based on 2 reviews Escribe una reseña
BAT 0712

BAT 0712

Accesorios

  • 12V 7A lead-acid sealed battery Extra slim model
  • Lead acid Capacity: 7Ah Volts: 12 Dimensions 6,5cm W x 15cm L x 9 cm H
€ 35.00EUR
Más información
CMBAT 2.0 (New version!)

CMBAT 2.0 (New version!)

Accesorios

  • Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel
  • Compatible with electronic board model CTH42, CTH41, ( swing gate opener) & CTH43 ( sliding gate opener)
€ 32.00EUR
Más información
KONTROL 7855

KONTROL 7855

CAJA DE CONTROL

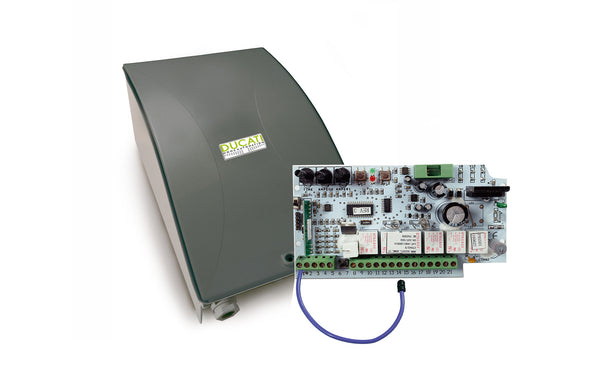

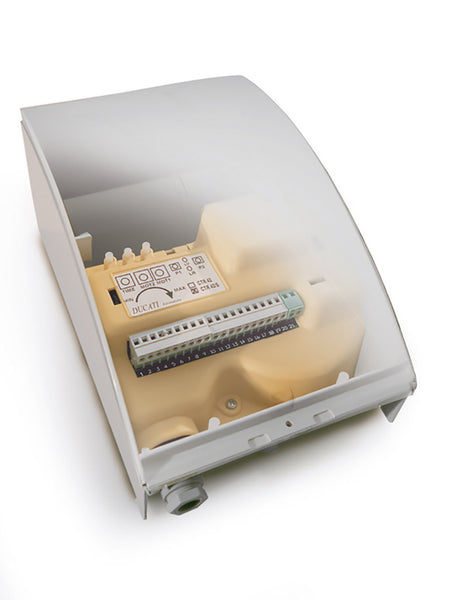

Description The standard Ducati's control box for medium size & high duty double or single swing gate openers 12V Comes with toroidal transformer, electronic board CTH42 featuring DUCATI's rolling coded radio transmission ( on board radio...
