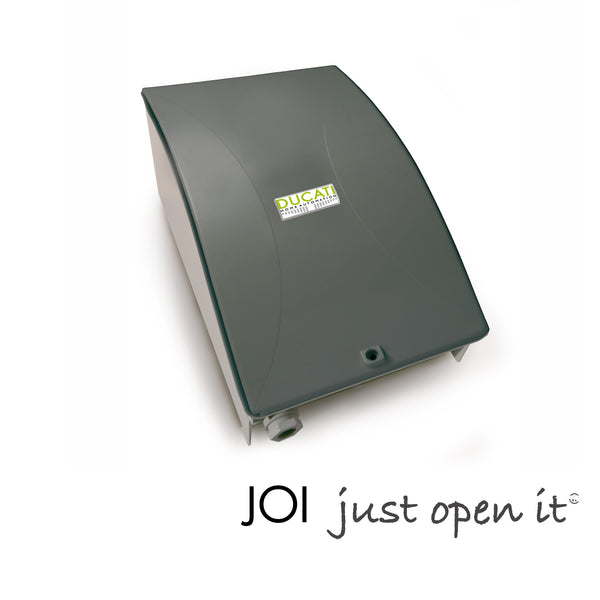

KONTROL 7855
The standard Ducati's control box for medium size & high duty double or single swing gate openers 12V
Comes with toroidal transformer, electronic board CTH42 featuring DUCATI's rolling coded radio transmission ( on board radio receive & antenna cable)
- featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family
- For those who desire a wide range of features ease of use, friendly adjustments and high reliability
- Ideal for light and medium duty double wing swing gate
- Original Made in Italy.
- Comes with toroidal transformer, electronic board CTH42 featuring DUCATI's rolling coded radio transmission ( on board radio receive & antenna cable)
MOTOR COMPATIBILITY:
- compatible with all DUCATI's 12V actuators
ACCESSORIES COMPATIBILITY:
- DUCATI's rolling coded remote controls,
- keyswitch NO ( normally open contact)
- 12V photocells
- loop detector
- 12V bulb blinker
- 12V AC Electric-lock

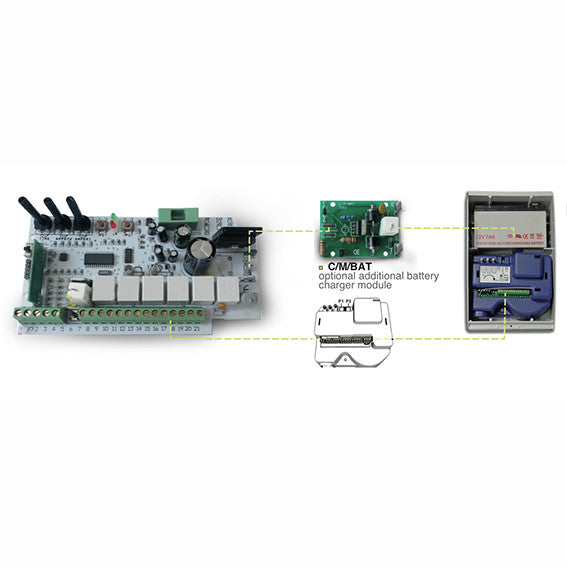

- CMBAT battery charger module
- 12V emergency back-up battery
- For those who do not require advanced settings but want a safe, reliable simple gate opener for small gates
- Features 2 working mode options: Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open & push to close)

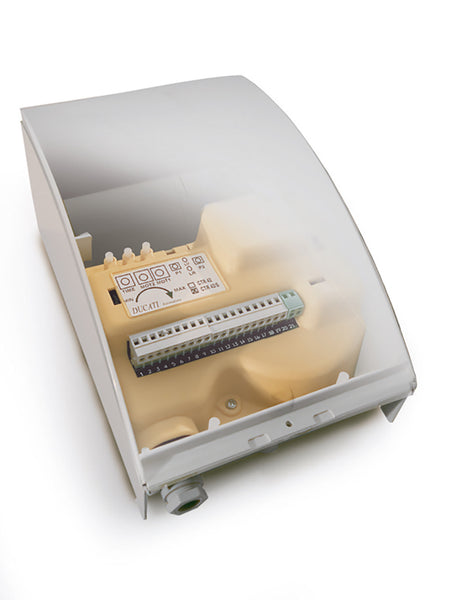

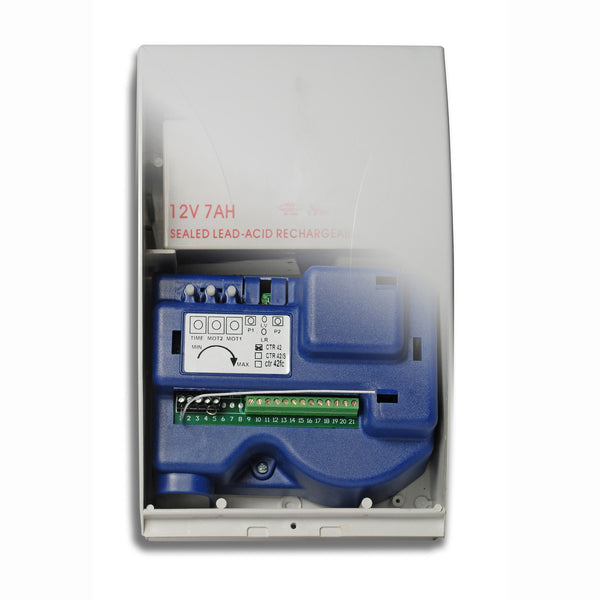

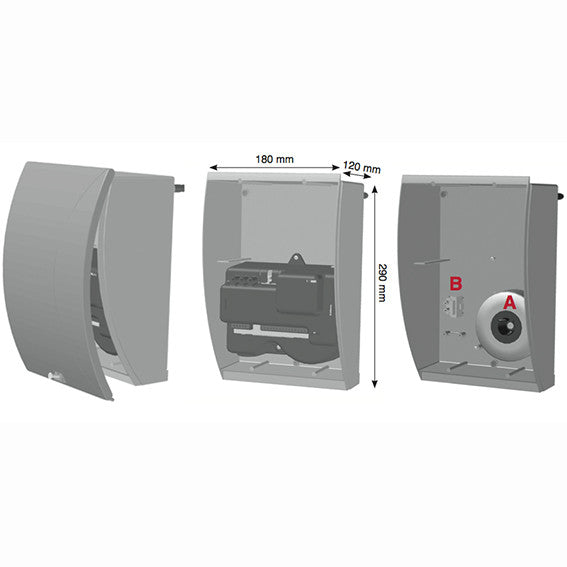

- Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
- Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
-
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory.

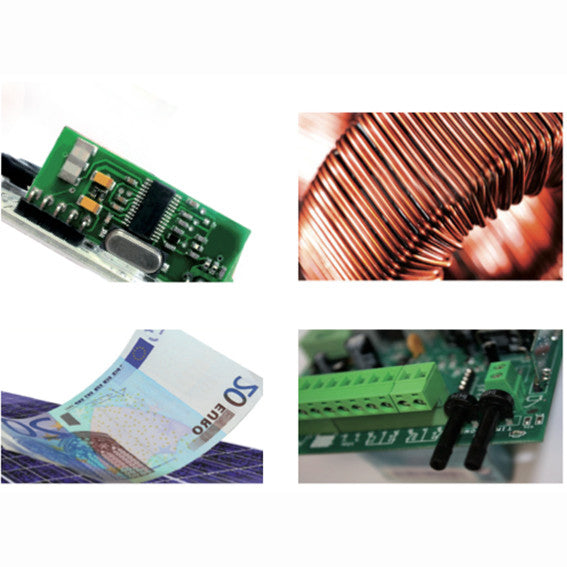

Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000) - Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the abso- lute reliability using innovative components of the latest generation as our High quality radio receiver hybrid

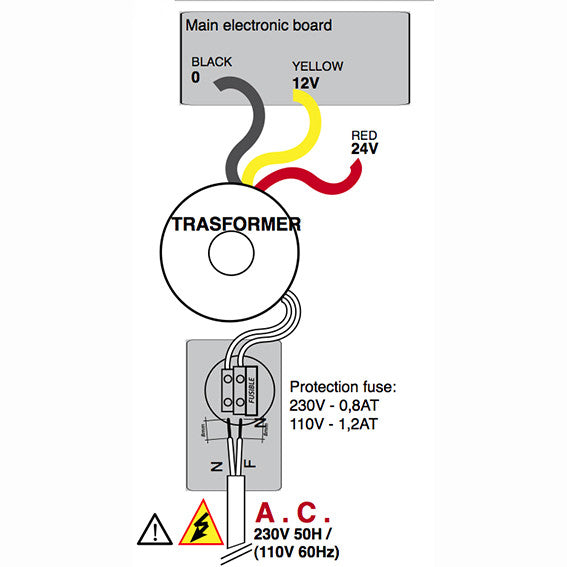

- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

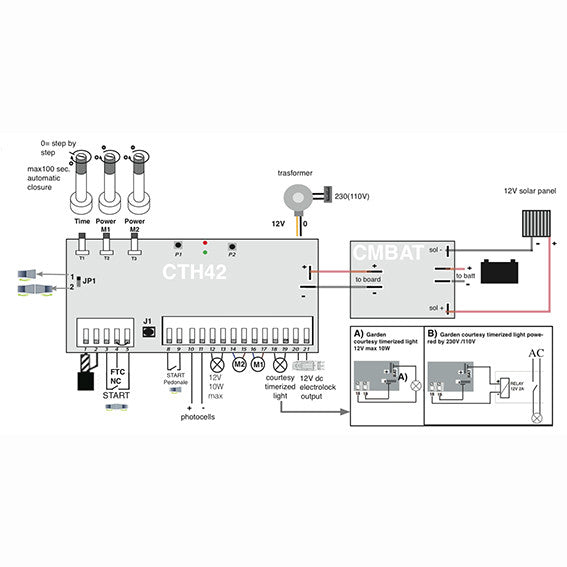

CTH42 ELECTRONIC BOARD TECHNICAL DATA
|
|
|
| toroidal transformer's Watts | 105W |
| protection fuse | √10AF |
| transformer protection fuse | 0,8AT (1,2AT for 110V transformer) |
| use on single or double wing gate | √ |
| output services | 12V |
| stand-by power consumption | 12mA |
| radio receiver | 2 channels ( 1 for full cycle opening, 1 for pedestrian access - partial 1 wing opening) |
| remote controls channels storage capacity | 10 codes |
| radio transmission protocol | DUCATI rolling code |
| radio frequency | 433,92MHz |
| remote control automatic learning | √ |
| On board antenna | √ |
| external antenna input | √ |
| automatic closure working mode | √ with adjustable pause time up to 100 sec. |
| step by step working | √ one pulse to open; one pulse to close |
| motor power adjustment | √ by potentiometer |
| Obstacle detection safety system(DUCO SAFE) | obstacle detection |
| In compliance with EU-CE norms | √ |
| timerized courtesy light output | √ max 10W 12V lamp |
| flashing light output | √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening |
| electric lock output | √ ac (warning the electric lock is incompatible with/while the board is powered by back-up battery) |
| safety beam-photocells input (NC contact) | √ NC normally closed contact |
| A full cycle START input(NO contact) | √ |
| pedestrian cycle START input ( N contact) | √ |
| output for optional additional back-up battery charge management & module CMBAT | √ |
BAT 0712
Accesorios
- 12V 7A lead-acid sealed battery Extra slim model
- Lead acid Capacity: 7Ah Volts: 12 Dimensions 6,5cm W x 15cm L x 9 cm H
€ 35.00EUR
CMBAT 2.0 (New version!)
Accesorios
- Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel
- Compatible with electronic board model CTH42, CTH41, ( swing gate opener) & CTH43 ( sliding gate opener)
€ 41.00EUR
