HC412

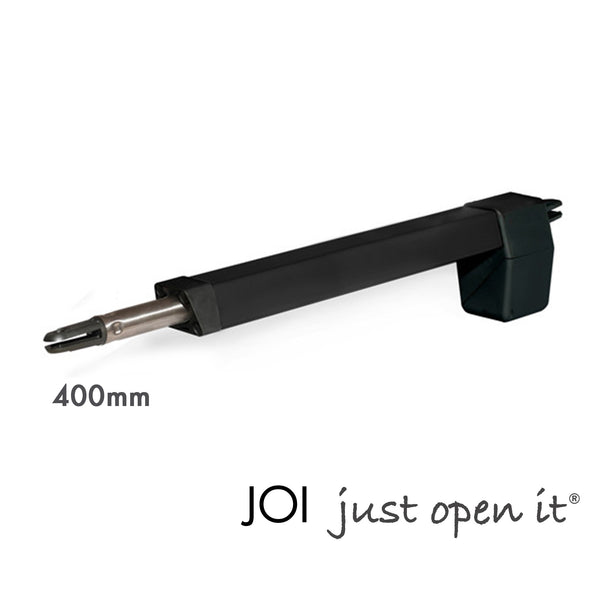

HC 412 Swing Gate TELESCOPIC actuator with 400mm stroke ideal for gates up to 3,5m /12 ft length each leaf
- 12V or 24V version available (24V version is recommended for heavy gates and SOFT STOP options)
- Integrated limit stops are availables for easier installation in "FC" version ( only for open position, while Closed position of the gate still requires a stopper fixed to the ground)

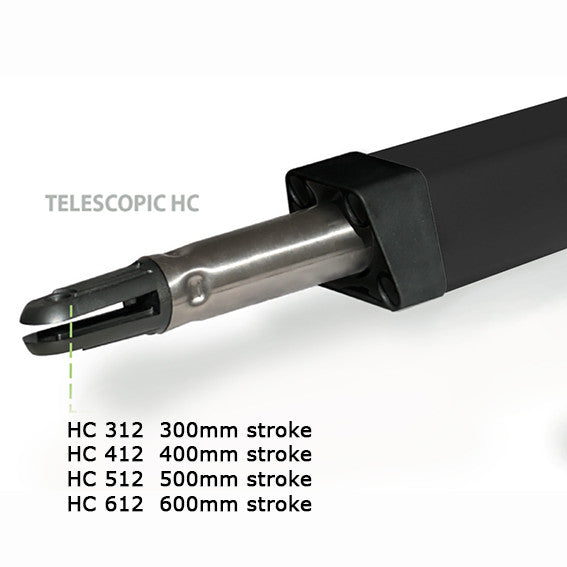

- Telescopic 400 mm stroke actuator is ideal to be installed on small/medium gates

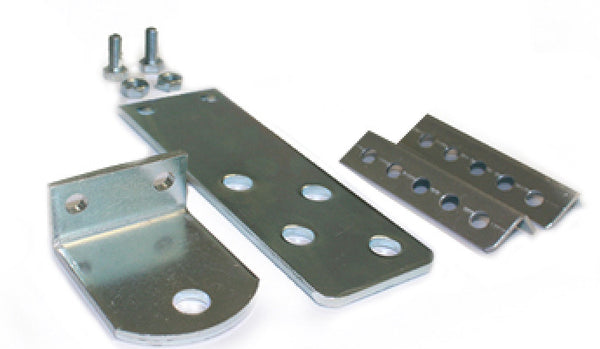

- This electromechanical irreversible actuator comes with 1m outdoor use cable H05RN-F 2 x 1mmq; set of fixing brackets and unlocking key for emergency manual release
- Vintage design with unsurpassed reliability
- Massive motor-gear unit for reliable power transmission

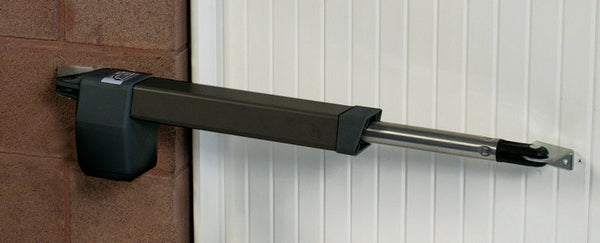

- Actuator can be installed either on the right or on the left of the gate and can also open towards outside the property
- Ideal for intensive use in any climate
- The gate keeps automatically locked.The self-locking properties of the spindle increase the protection against a dangerous and unautorised “pressing” of the gate and the otherwise necessary elecktro-locks for the final positions can be omitted
- The HC actuators are nowadays development of the original and countless imitated project dated 1986, made by Lorenzo Ducati, a pioneer in gate automation
- 2 years warranty.
- Color: black (special color edition 2016). Previous versions came in black and gray color version, no more availables.
TELESCOPIC ELECROMECHANICAL ACTUATOR HC 412

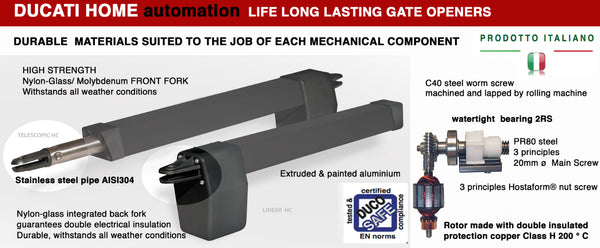

Actuator made of durable materials. Each component is made in the ideal material to ensure quality , reliability in all weather conditions, long lasting performances and safety: our DC actuators ensures double electrical insulation
- Stainless steel pipe AISI 304
- PR80 steel 3 principles 20mm main screw
- Sinterized gears

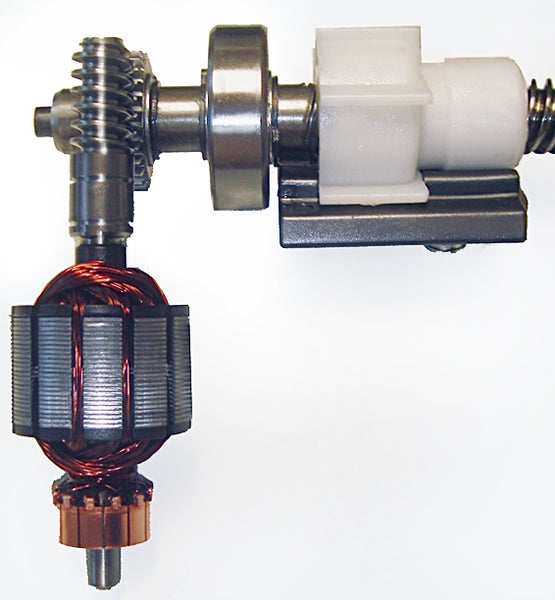

- C40 steel worm screw machined and lapped by rolling machine
- Rotor made with double insulated copper Class H 200°C
- Extruded painted aluminium

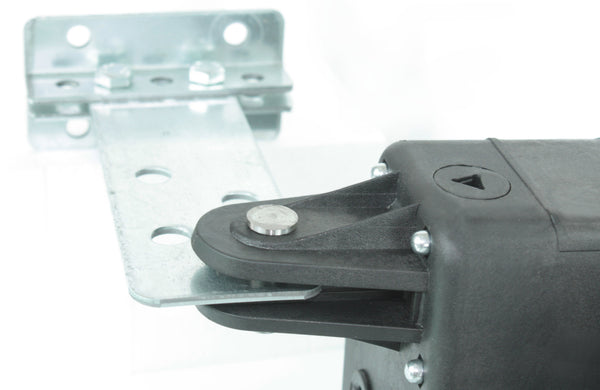

- High strenght and double motor insulation: Nylon-glass integrated back fork guarantees double electrical insulation. Durable, withstands all weather conditions
- Hostaform® three principles nut screw for a long lasting high-performance
|
|
|
| dc motor
|
60W (120W) |
| max pushing & power
|
1200N (2400N) |

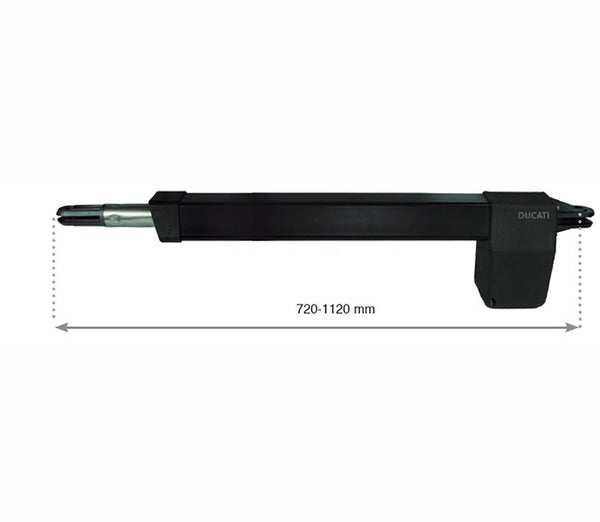

| Stroke | 400mm |
| motor speed
|
1,5 cm/sec (2cm/sec) |
| telescopic actuator | √ |
| working cycles limit | continuous use |
| working temperature | -20°C/+50°C |
| max wing length | 3,5m/12 ft each leaf |
| max.wing weight (24V version) | 350kg (450kg) |
| max. opening angle | 130° |
| automatic wing lock | √ irreversible actuator |

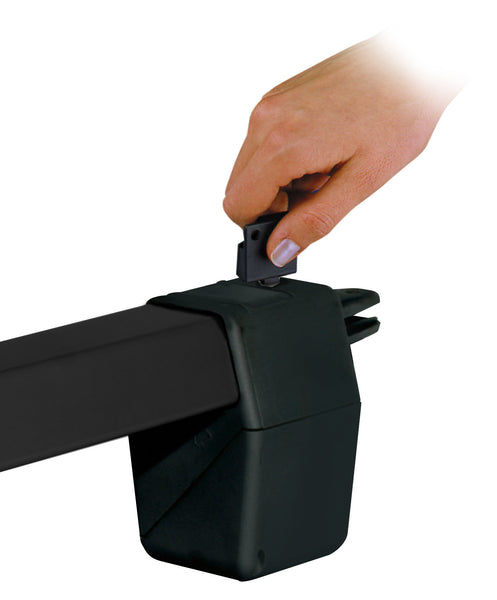

| manual release system | √ by triangular key |
| Max "C" measure /pillar dimension (see pillar installation diagram on instruction manual) to install the actuator avoiding any masonry work on the pillar | 21 |
| Compatible with gate opening towards outside | √ |
NOTE:
the actuator will stop by amperometrical detection system: it therefore requires mechanical limits to be installed on the ground to stop the gate wing in the open and closed position. Special "FC" version are featured with on-board mechanical limits for the open wing position. Warning: a stopper fixed to the ground is still required for the closed position of the gate.
CONTROL BOARD COMPATIBILITY
12V version actuator is compatible to all DUCATI's 12V swing gate opener control boxes
24V version actuator is compatible to all DUCATI's 24V swing gate opener control boxes
Opiniones de clientes

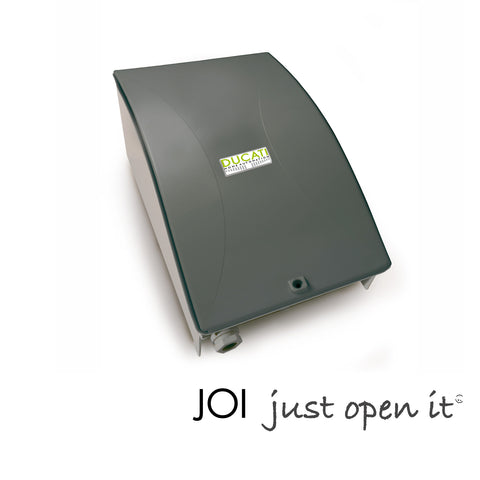

KONTROL 7855
