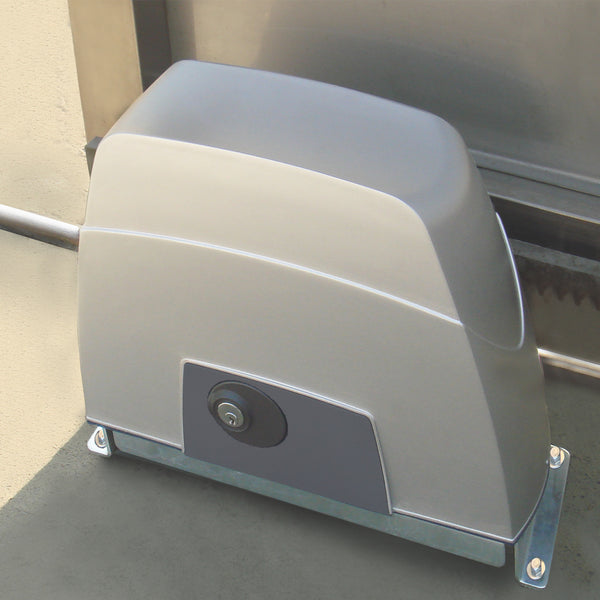

SLIDE 743 SOLAR (kit)
SLIDE 743 SOLAR powerful solar-powered 12V sliding gate opener featuring SOFT STOP
Ideal for medium-duty residential gates up to 800kg
4m rack are included, additional rack can be added as an optional accessory in case of gate longer of 4m.
Ensures long-lasting performances in all weather conditions.
Operate your gate powered by a photovoltaic solar panel for 100% autonomous use
- Ideal for residential gates up to 400kg weight
- The perfect solar powered gate opener. All included operating your gate in 100% energy independence.
- The ideal gate operator where AC power is unavailable
Highly reliable as featured with Ducati's low consumption: with only 7mA (0,007A) stand-by consumption ensures long-lasting performances in all weather conditions. Ideal for residential use. Up to 50 cycles daily guaranteed. No additional modules require: it's all included: onboard solar panel & battery recharge management!
LEARN MORE about reduced consumption technology....
LEARN MORE about our solar-powered openers....
Featuring DUCO SAFE: Original Made in Italy.

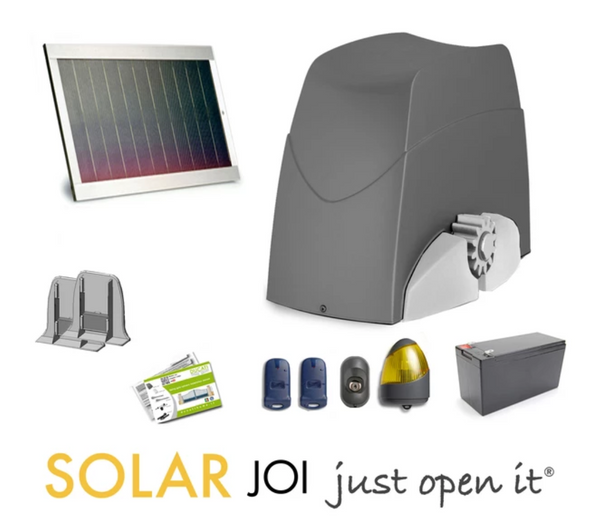

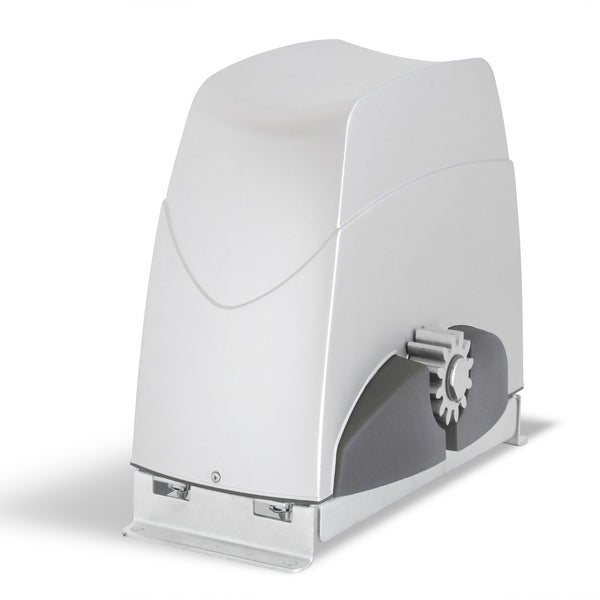

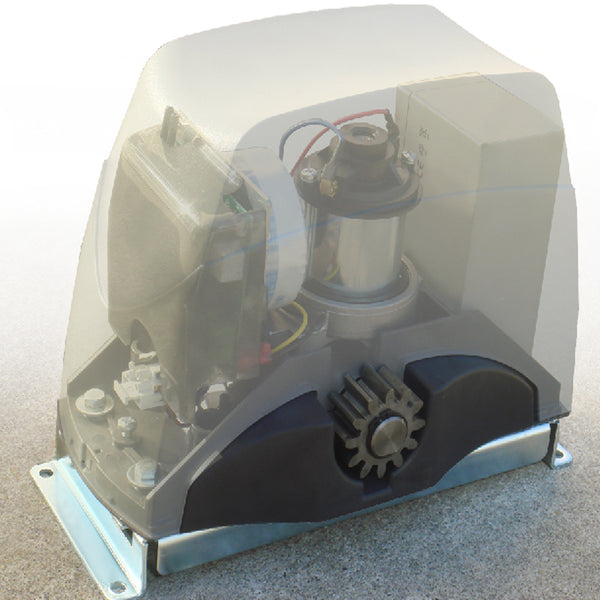

- 1x SLIDE 743MC 12V DC motor case , electronic board CTH43V/12V featuring double speed, soft stop & on board radio receiver ( rolling coded)
- 1 x CMBAT battery charger & solar panel power supply management electronic board

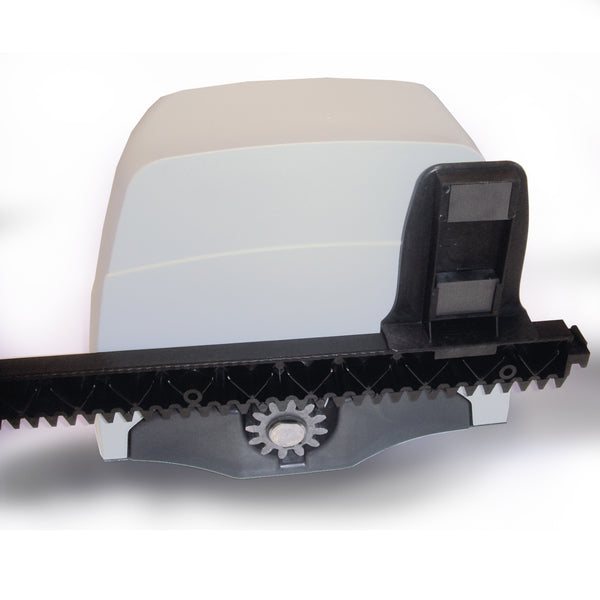

- 2 x Magnetic limits

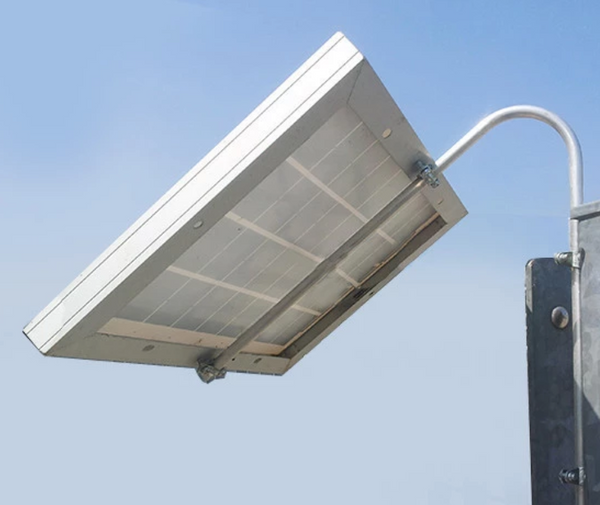

- 1 x 12V 10W solar panel
- 1 x 7A 12V battery

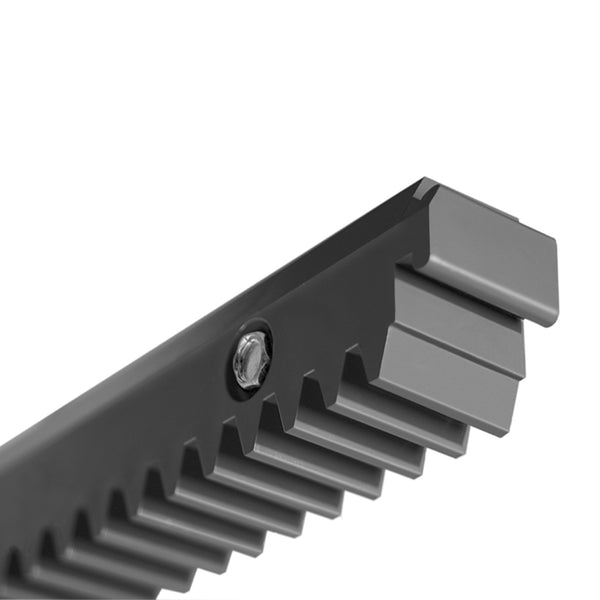

- 4m x 8612 Hostaform rack ( 8 x 50cm)
- 1 pair of keys for manual unlocking

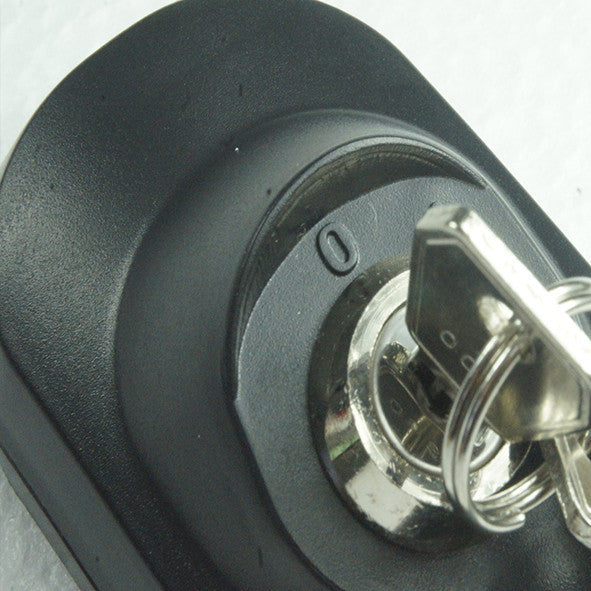

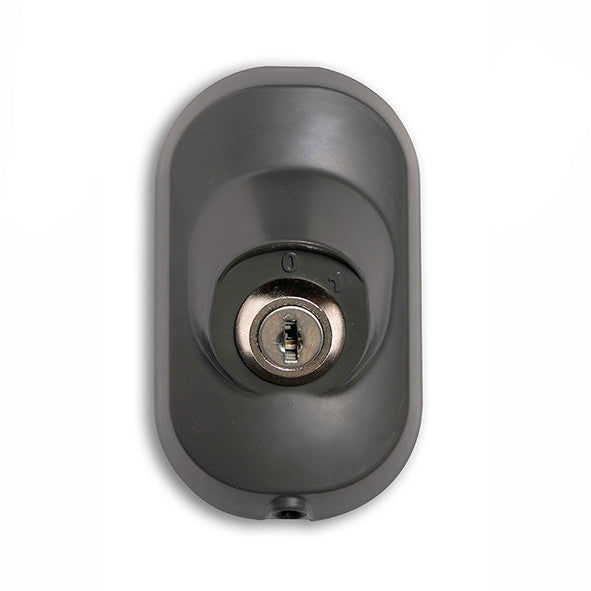

- 1 x SW5000 key switch

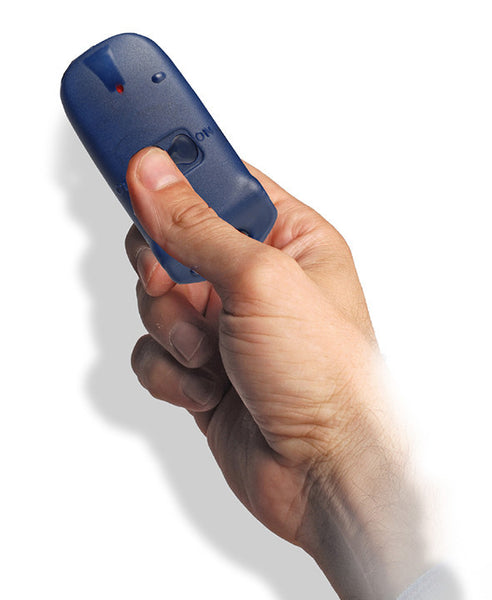

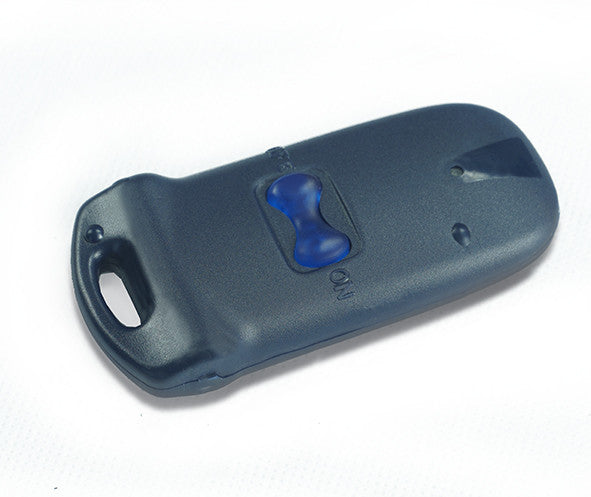

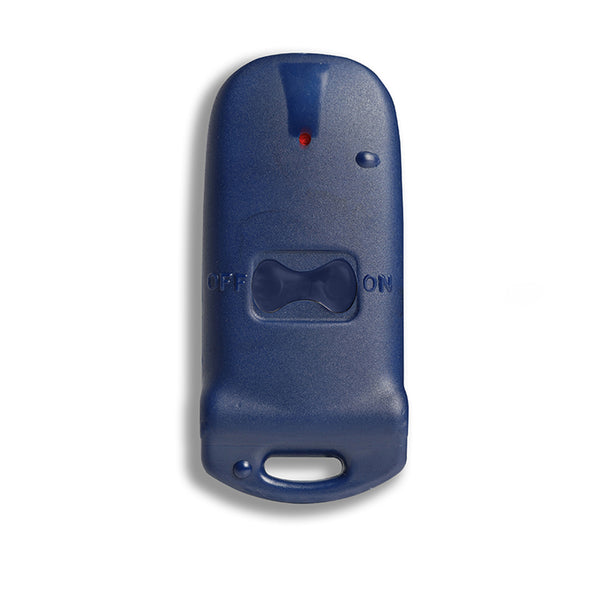

- 2 x 6203R x DUCATI rolling coded remote controls

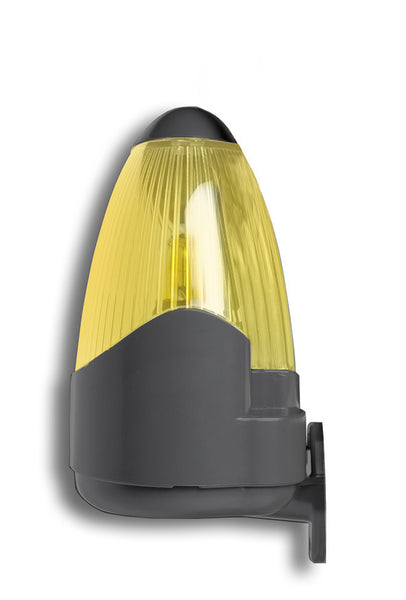

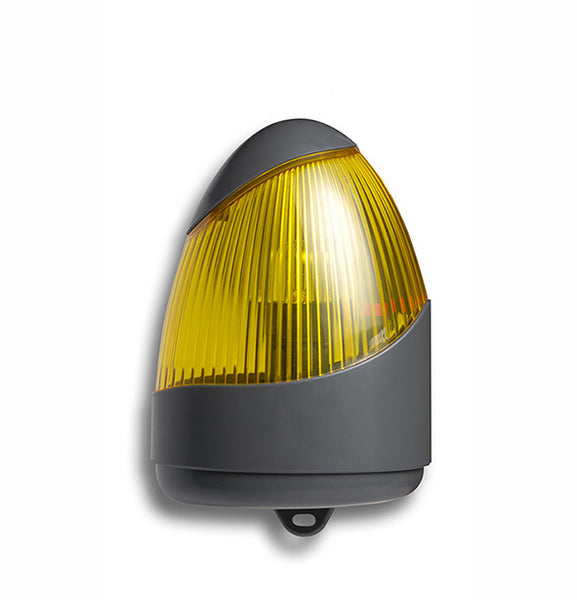

- 1 x FLASH 7500 blinker
* Starting from 01/04/2022, due to the difficulties in sub-supplying of some components, the vendor reserve the right to supply the product with these modifications:
- the transformer could be replaced by a battery charger
- the electronic board model could be replaced by a different model substantially equivalent to the one listed on the website
SOFT STOP
- The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
- This prevents from usury and ensure a long life to your opener and door.
- This function prevents the door banging closing
DUCO SAFE technology
Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while the gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200
ASR (Autimatic Reversal System)
Thanks to the integrated amperometric detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. The highest safety is ensured.
- Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
- Features double speed with SOFT STOP. This feature is very important to guarantee optimal motion control and a gentle stop. Ideal for very heavy or highly sliding gates, controls the force of inertia of the gate, preventing kickback.
- Can work independently in case of power failure: by adding the external battery charger module CMBAT* and a 12V battery*. (* = are not included in this package and must be added to the kit package)
- Motor housing with integrated battery housing compartment: can fit any 12V battery up to maximal dimension: 9cm x 15cm x 6,5cm
- 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of an impact on an obstacle. The adjustment is very easy: just need to rotate the potentiometer related to each motor.
- Pedestrian opening (partial opening of one the gate to allow pedestrian crossing only) this feature can be controlled by remote control or wired command
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
- After-sale service and assistance provided directly by the manufacturer without intermediaries in order to provide quick and immediate solutions to any demand.
- The gate is automatically locked in the closed position (irreversible system).

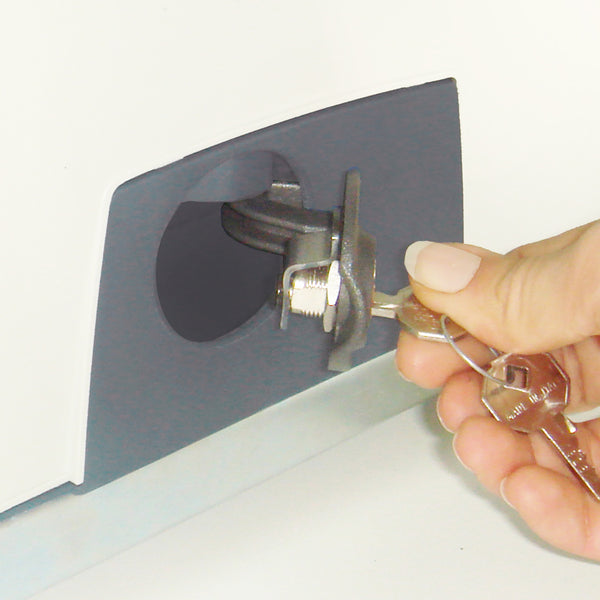

- Manual release system by key
- Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Totally in house designed software and hardware are focused on reduced energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High-quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

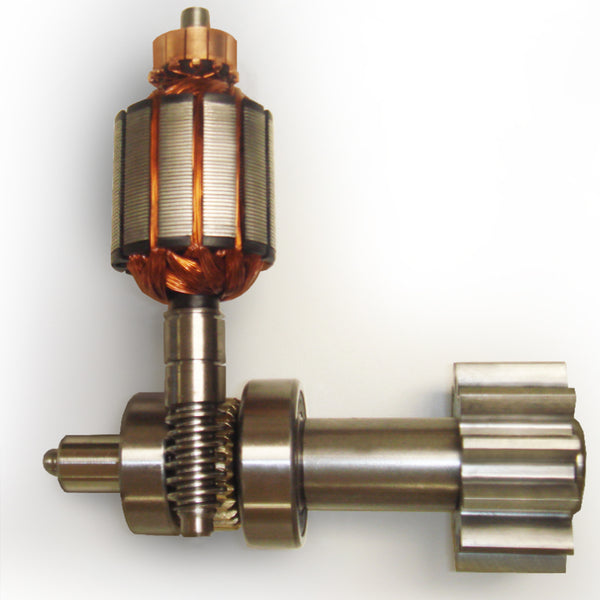

SLIDE 8743 M 12V Motor Technical Data
Motor power supply | 12V dc |
dc motor power | 240W |
maximum thrust | 2800N |
Speed | 12m/min |
Gate weight length up to | 800 kg |
Operating temperature | 20°C/+60°C |
Maximum duty cycle | continuous use |
Magnetic limits | √ |
CTH43V/12 ELECTRONIC BOARD TECHNICAL DATA
Fuente de alimentación principal de CA | 230V (110V on demand) |
System Operating Voltage | 12V |
Backup-up battery & power supply | √ |
Solar module power supply | √ |
Stand-by consumption | 0.007A |
Protection fuse on board | √ |
Transformer protection fuse | 0.8A T(1.2A T) |
Toroidal transformer wattage | 105W |
Radio receiver | 2 channels rolling code |
Radio codes storage capacity | 10 |
Radio transmission protocol | DUCATI rolling code 433MHz |
Radio remote codes learning | self-learning |
On board antenna | √ |
Input external antenna | √ |
Automatic closing pause time | √ adjustable by trimmer 1-100 sec |
DUCOSAFE Safety obstacle detection system (entrapment protection) | √ |
Motor power adjustment by potentiometer | √ |
ARS automatic reverse system on obstacle detection | √ |
SOFT STOP Double speed with soft stop | √ |
FAST extra speed motor | √ |
Electric Limits | √ magnetic |
Safety photocells input | √ NC |
START operating cycle (full cycle) contact | NO |
START operating cycle (pedestrian cycle) contact | NO |
Blinker output | 24V 10W |
Battery charger | not on board (requires CMBAT) |
Battery input | not on board (requires CMBAT) |
output for optional additional back-up battery charge management & module CMBAT | √ |
Low battery indication by flashing light blinker | - |
Solar panel input * | not on board (requires CMBAT) |
LED to indicate power ON | √ |
CLICK HERE to download the SLIDE instruction manual
CLICK HERE To watch the SLIDE collection product Video
Electronic board CTH43V/12 Wiring diagram:
CTH43V/12V | |
CMBAT | |
R403UE (230V) | |
R403USA (110V) | |
R76 SLIDE-24V-300W | |
GIU110 | |
R70 | |
R39 SLIDE-12V-300W | |
PL2141 | |
PL2142 | |
SLIDE-LOCK |
Opiniones de clientes
BAT 0712
Accesorios
- 12V 7A lead-acid sealed battery Extra slim model
- Lead acid Capacity: 7Ah Volts: 12 Dimensions 6,5cm W x 15cm L x 9 cm H
LASER 100
Accesorios
- Pair of Photoelectric SAFETY BEAM PHOTOELECTRIC SENSORS
- Universal model Also called Photo Eye Sensor / Photocells Compatibility : Universal model Sensing range: 12 m
PLAK 8700
Accesorios

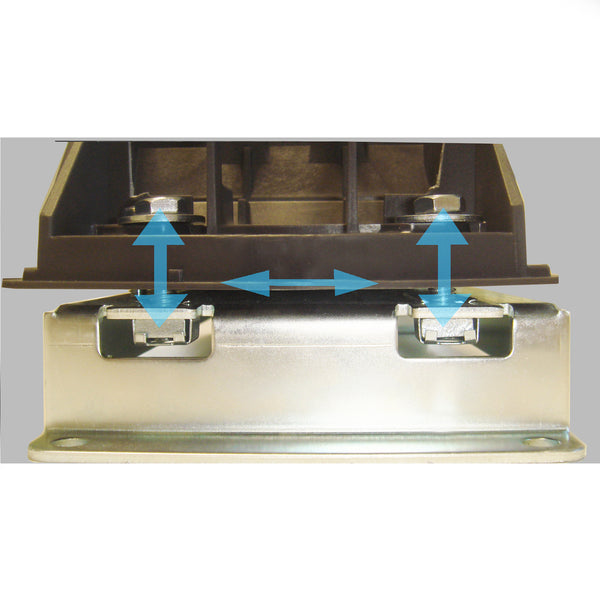

- Fixing plate with motor position adjustment system Compatible with SLIDE sliding gate opener Material : Stainless steel
