KONTROL 9048 2.0 (24V)

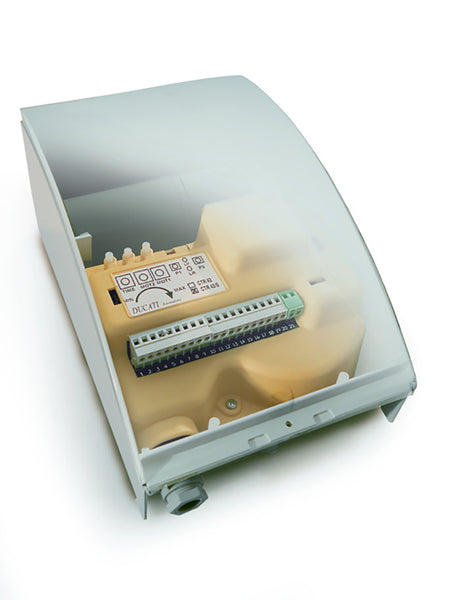

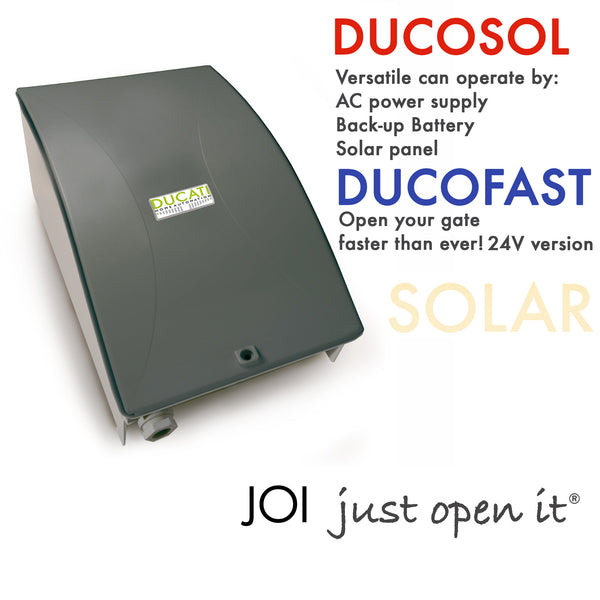

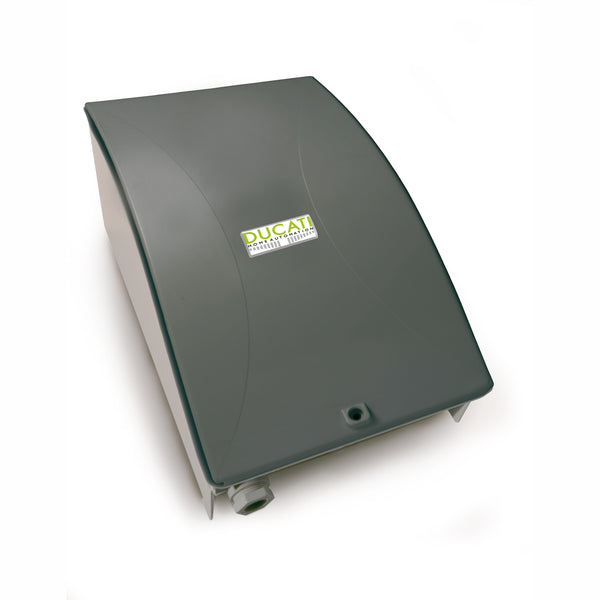

Ducati's DUCOSOL Technology control box
Versatile, can operates by 3 type of power supply
- A.C. 110/230V 60/50Hz
- By emergency battery
- By solar panel
Ideal for residential use and ensures 100% autonomous use even where AC power is unavailable.
- DUCO FAST Quick closing and opening. Open your door faster than ever !
- Double speed with SOFT STOP
- SOFT STOP adjustment: you can postpose/anticipate the slowdown phase
- ASR Auto reversal system: inverse mouvement by obstacle detection while closing
- DUCO SAFE: Obstacle detection sensitivity adjustment

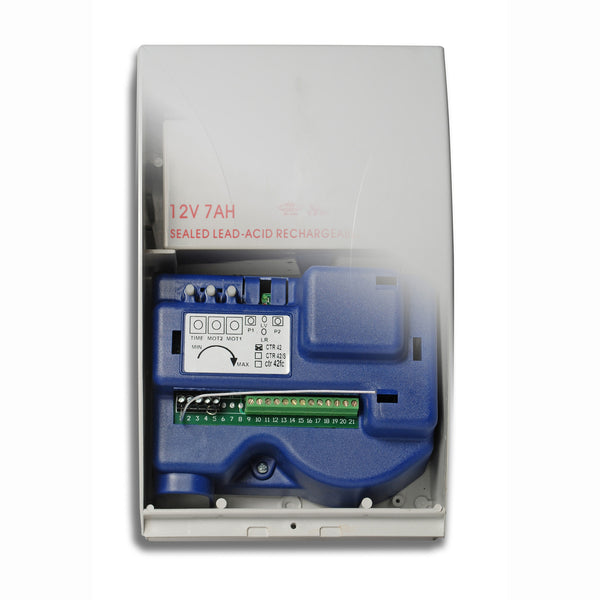

- Control unit with integrated battery housing compartment
- Integrated battery charger on board: just ready for connection to 2 x 12V emergency batteries in series connected. In case of power failure works autonomously up to 3 days
- Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. Compatible to all standard 2x 12V batteries & standard 24V 20W solar panel. no extra module needed
- Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
- Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
- Adjustment of the time lag between the two doors
- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) can be controlled by remote control or wired control.
- Possibility of connecting an external timed courtesy light (example: garden light)
- Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 24V electric-lock ( Booster required)
- Easy self-storing of the remotes controls by pushing one button
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid

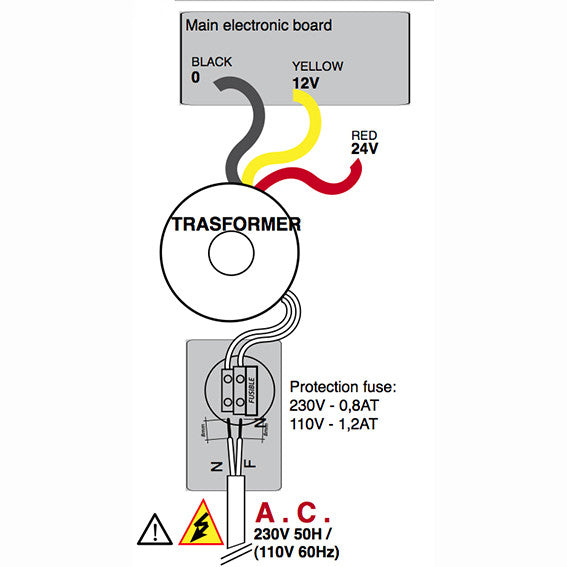

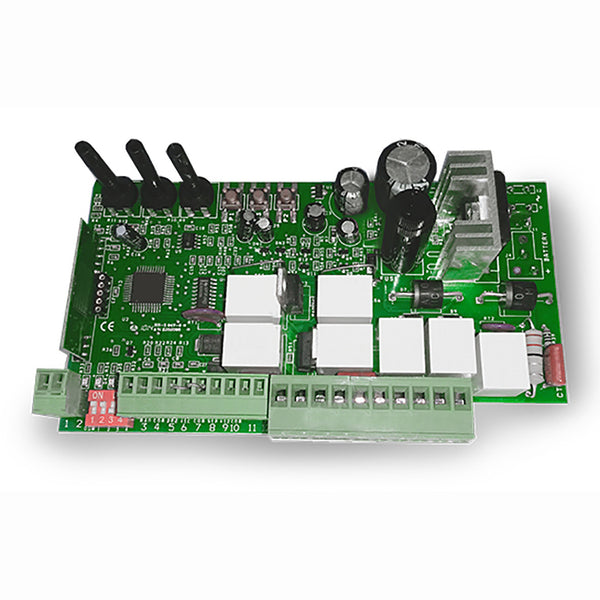

- Comes with toroidal transformer, electronic board CTH48/24V featuring DUCATI's rolling coded radio transmission ( on board radio receiver & antenna cable).
- On board solar panel & battery charge management
MOTOR COMPATIBILITY:
- compatible with all DUCATI's 24V actuators
ACCESSORIES COMPATIBILITY:
- DUCATI's rolling coded remote controls,
- key switch NO ( normally open contact)
- special low consumption 12V photocells model 7120 or any photocells with NC contact and 24V power imput ( Warning by solar panel main power supply it is mandatory to use original low consumption 7120 Ducati photocells to ensure long lasting autonomy)
- 24V bulb blinker
- 24V min. 20W solar module & 2 x min.7A 12V battery in series connected( external battery housing needed and not included!
- MPBAT battery charger with european plug & charge control
- Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
- Low consumption technology: only 7mA stand-by consumption! Protect the environment, reduces waste of energy, save money.
- Ensure long lasting autonomous use ad reliability. up to 40 daily cycles guaranteed even in worst winter weather.

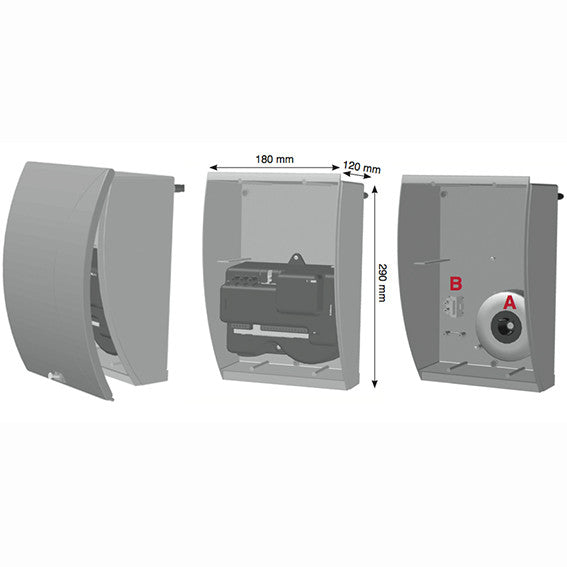

- Control unit with integrated battery housing compartment: can fit any battery up to maximal dimension : 9cm x 15cm x 9,5cm h. 2 12V 7A batteries must be fitted in external housing compartment ( not included)
- Integrated solar panel & battery management: the card is a just ready to operate autonomously powered by solar panel. No need to add any extra module
- standard battery use: when you'll need to replace the battery ( about each 2-3 years of use) you can find it anywhere a we do not use customized expensive batteries
- Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step mode (push to open & push to close).
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power
- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing)
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability. After sale service and assistance provided directly by manufacturer without intermediaries
- Quick and easy installation
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
CTH48 / 24V ELECTRONIC BOARD TECHNICAL DATA
(solar panel & battery management on board)
|
|
By AC power supply/ ByAC power supply + back-up battery/
By 24V min 20W solar module + 2x 7A 12V batteries in series connected. Note: the control box is always supplied with an additional toroidal transformer 230-240V /50-60Hz or (110V/60Hz). Select the desired version while ordering) |
| toroidal transformer's Watts | 105W |
| protection fuse | √10AF |
| transformer protection fuse | 0,8AT (1,2AT for 110V transformer) |
| use on single or double wing gate | √ |
| output services | 24V |
| stand-by power consumption | 14 mA |
| radio receiver | 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening) |
| remote controls channels storage capacity | 20 codes |
| radio transmission protocol | DUCATI rolling code |
| radio frequency | 433,92MHz |
| remote control automatic learning | √ |
| On board antenna | √ |
| external antenna input | √ |
| automatic closure working mode | √ with adjustable pause time up to 100 sec. |
| step by step working | √ one pulse to open; one pulse to close |
| motor power adjustment | √ by potentiometer |
| Obstacle detection safety system (DUCO SAFE) | obstacle detection |
| In compliance with EU-CE norms | √ |
| timerized courtesy light output | √ |
| flashing light output | √ max. 10W 24V lamp. blinks quickly while closing, blinks slowly while opening |
| electric lock output | √ booster is mandatory by battery/solar panel main power supply |
| safety beam-photocells input (NC contact) | √ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120 |
| A full cycle START input (NO contact) | √ |
| pedestrian cycle START input ( NO contact) | √ |
| Emergency STOP input (NC contact) | √ |
