- Advanced grade electronic board featuring FAST Speed & SOFT STOP + many additional professional grade features. Ideal for residential & commercial use. Can be powered by main AC power supply or by solar panel. Can be used on single double or single 12V swing gate opener.
- Ideal for automating a gate where the power supply is unavailable, but it is also good and recommended as an intelligent alternative to the existing power grid connection. It allows you to maximize your autonomy and savings: it simplifies and reduces installation costs and saves up to € 100* on annual electricity bills. (*average annual electrical cost of most of the standard gate openers available on the market)
- Help protecting our planet for future generations. by using a renewable energy source it contributes to the preservation of the planet and the reduction of the consumption of fossil fuels harmful to the environment.
- Highly reliable as featured with Ducati's low consumption technology FULLSOL: with only 0,007 stand-by consumption ensures long lasting performances in all weather condition. Up to 50 cycles daily guaranteed even by poor light, with a simple 24V 12A battery + 24V 10w photovoltaic solar panel. No additional modules requires: it's all included: on board solar panel & battery recharge management!
- Featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family
- DUCATI's rolling coded radio transmission ( on board radio receive & antenna cable) with it's unique changing code, give you peace of mind that your family and property is safe and secure.
Compatible with all DUCATI's 12V actuators
- DUCATI's rolling coded remote controls
- key switch or and any switch button / loop detector with NO contact (normally open contact)
- 24V photocells NC contact
- 24V 10W max bulb blinker
- External aerial antenna
- 24V battery
- 24 V min. 10W photovoltaic solar panel
- 24V ac Electric-lock (Warning: the electric lock power supply output is 24V DC. It is therefore necessary that the electric lock is equipped with a booster that transforms the 24V DC output voltage In 24V AC)
- GSM 996 module to operate your gate by mobile phone
- GSM INTERCOM 1096 for both intercom communication directly on your mobile phone and to operate your gate by mobile phone)
- FAST and immediate opening of your gate: get instant high speed and SOFT STOP
- ASR automatic reversal system. Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.
- SELF LOCK TECHNOLOGY The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation.
- Leaf phase displacement phase time adjustment: necessary in case of a 2-wing gate with different opening angles.
- Output for remote gate status indicator. light on = gate is open; light off = gate is closed; quickly flashing light= gate is closing;; slowly flashing light= gate is opening.
- Features 2 working mode options: Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open & push to close)
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing only) this feature can be controlled by remote control or switch button
- On board integrated photovoltaic solar panel power supply management (no extra modules needed) the solar panel can be directly wired to the CTH48 electronic board
- On board integrated battery charge management (no extra modules needed) the battery can be directly wired to the CTH48 electronic board
- The CTH48 is designed to be powered by standard solar panels and batteries that are easily available on the market so it does not impose costly standard battery use as we do not impose to our customers customized expensive batteries.
- DUCOSOL Technology Versatile, operates by 3 type of power supply -by A.C. 110/230V 60/50Hz ( with toroidal transformer) -by emergency battery -by solar panel
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request.
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

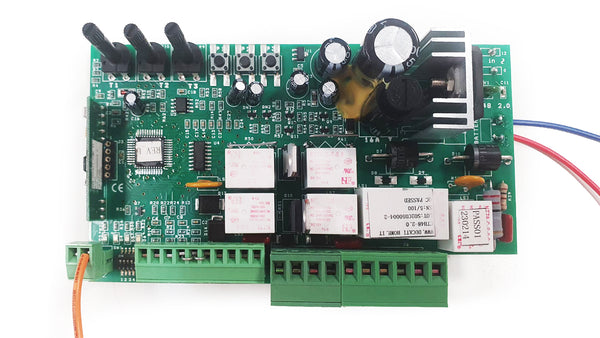

CTH48 24V ELECTRONIC BOARD TECHNICAL DATA
(solar panel & battery management on board)
|Fuente de alimentación||
use on 1 or 2 wing gate
|stand-by power consumption||12mA|
|radio receiver||2 channel|
|remote controls channels storage capacity||20 codes|
|radio transmission protocol||DUCATI rolling code|
|remote control automatic learning||√|
|On board antenna||√|
|external antenna input||√|
|automatic closure working mode||√ with adjustable pause time up to 100 sec.|
|step by step working mode||√ one pulse to open; one pulse to close|
Semi automatic working mode
√ during automatic closure mode a command can reopen the gate while closing
|Motor power adjustment||
√ by turning potentiometer clockwise you increase motor power and decrease obstacle detection sensibility
slow speed starting point adjustment
√ by potentiometer
Obstacle detection safety system (DUCO SAFE). In case an obstacle is detected during the maneuver, The gate will immediately stop preventing injuries.
|√ amperometrical obstacle detection|
In compliance with EU-CE norms.
dimerized ( 60 sec.) courtesy light output
|flashing light output||√ max. 10W 24V lamp. blinks quickly while closing, blinks slowly while opening|
|safety beam-photocells input (NC contact)||√ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120|
CTH48 to view installation manual
