Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
ELEGIR LA VARIANTE DEL PRODUCTO
€ 189.00EUR

Envío / IVA se calculan a check out y depende de la dirección de entrega

  • Entry level single wing gate opener ideal to automate a small pedestrian gate.
  • Recommended for 1 wing gate wing of not over 1,8m length/150kg.
  • The gate must be well balanced and opening towards inside the property (pull-to-open) comes with 12V dc motors.
  • Electromechanical actuators: no need of any electric lock: the motor keep the gate closed emergency manual release system Safe and reliable.
  • In case of obstacle detection it stop pushing in compliance with EU safety norms.
  • This single wing gate opener is an entry-level gate opener ideal to motorized a light single-wing swinging gate measuring up to 1,8m/6ft.
  • For those who desire a very uncomplicated gate opener, easy to be installed.

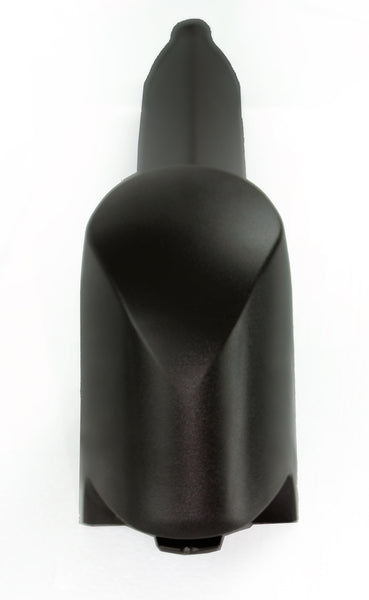

  • Ducati's SW400 actuator that comes in this package is a very short but efficient actuator without telescopic pipe that can be installed on very light and small gates features a modern design, can be installed on both side of the gate (no matter if left or right wing).
  • Powered by 12V dc motors ensure long-lasting performances in all weather conditions and can work continuously without overheating.
  • CTH 41 electronic board delivered in this product is a very simple but reliable electronic board without adjustments: it's all set automatically to ensure a very simple and quick installation for DIY users.

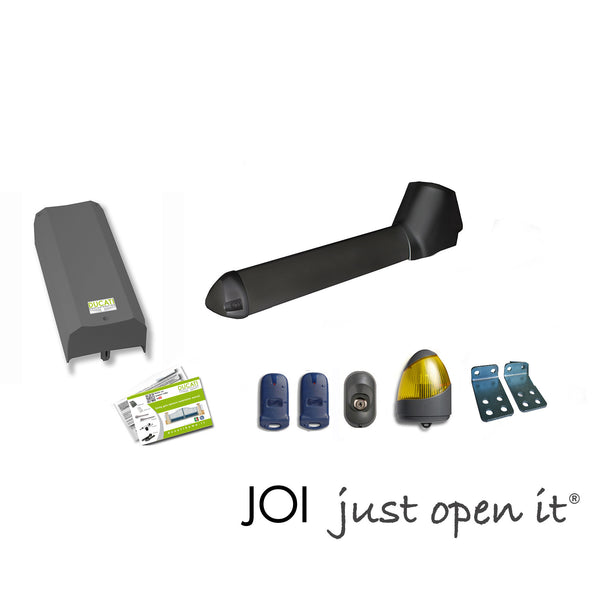

  • 1xSW400 - 400mm stroke linear actuator

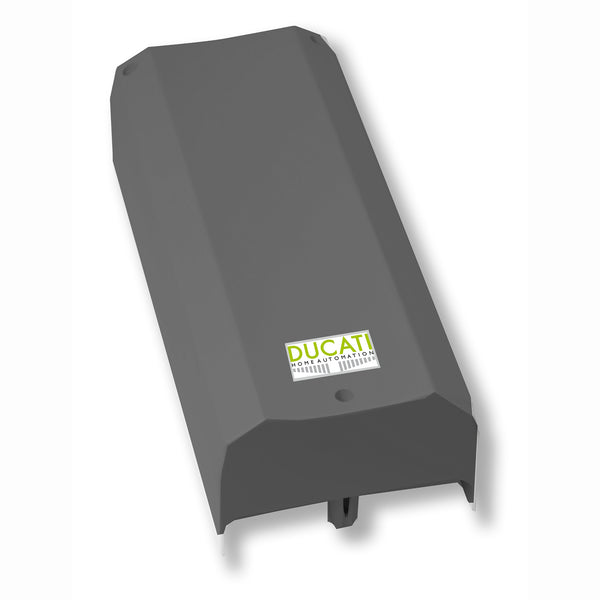

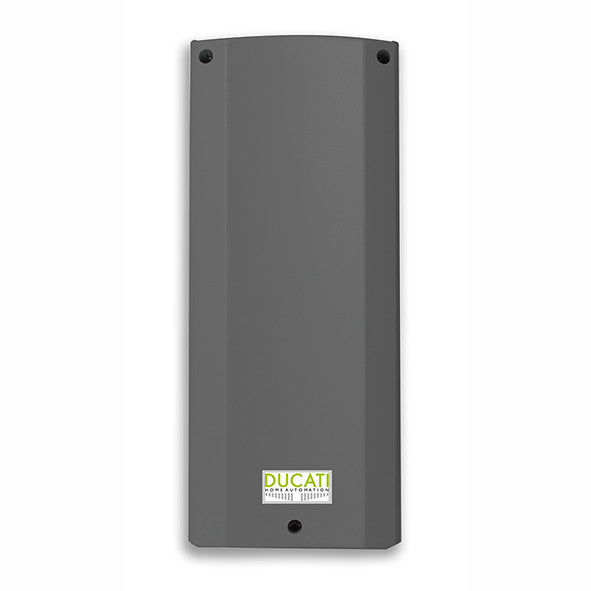

  • 1x7851Rol - Small control box with electronic board CTH41+ transformer

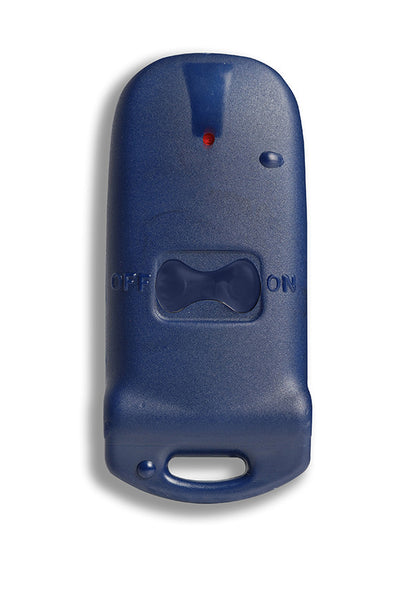

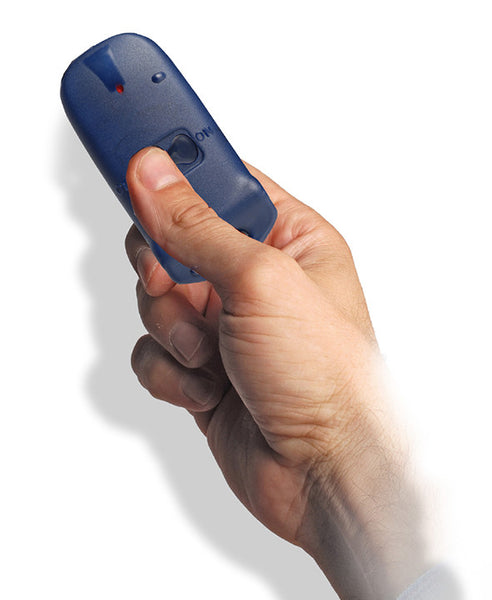

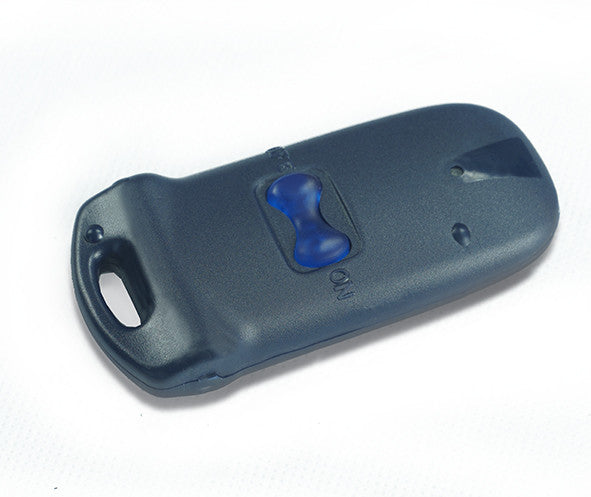

  • 2x 6203Roll - 2 buttons 433 Mhz rolling code transmitters

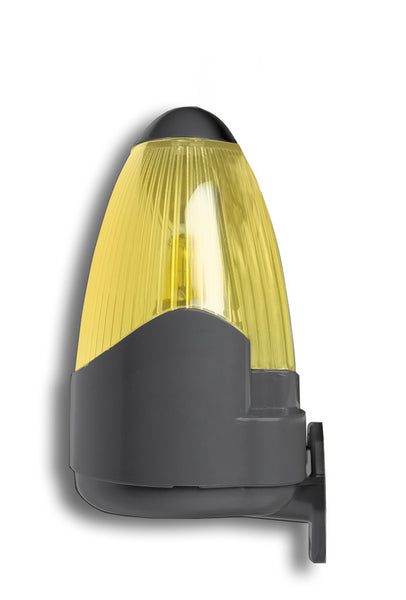

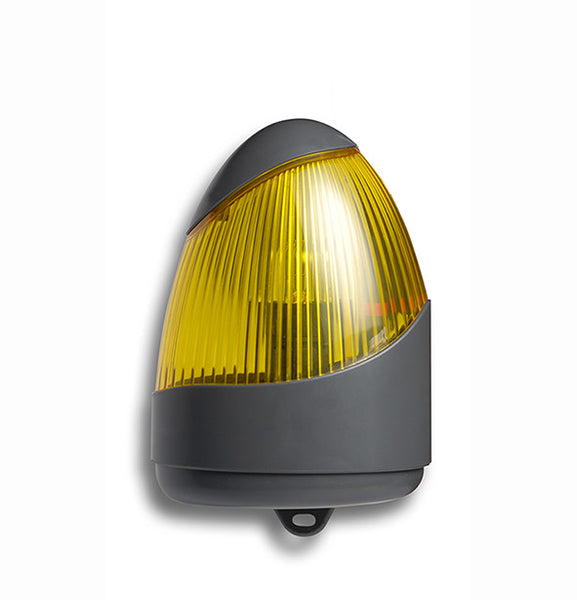

  • 1x SW7500 - blinking light 12V

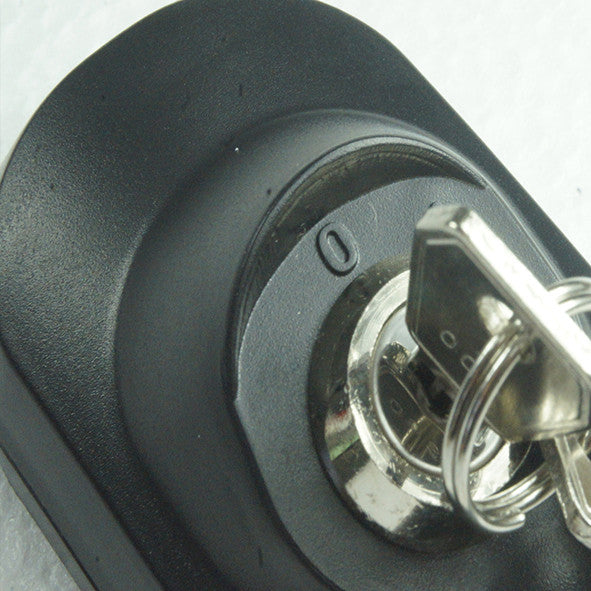

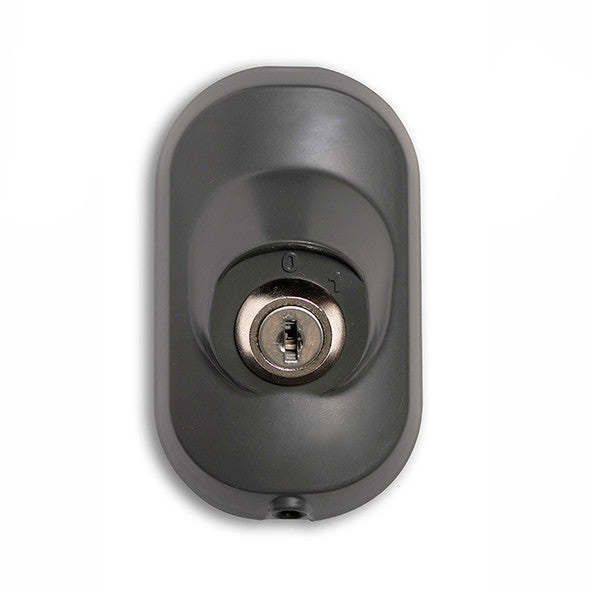

  • 1x SW5000 - key switch
  • 1 set of actuators fixing plates
  • 1x instruction manual

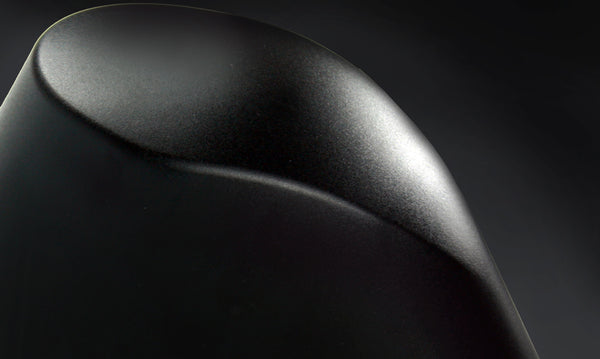

This classic DUCATI  "vintage" design ENTRY LEVEL gate operator features simples and basic functions for an easy installation with no adjustments needed.

AUTO-LOCK TECHNOLOGY

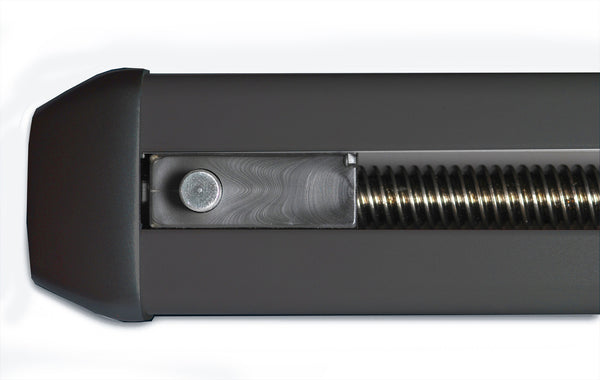

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation



For those who  do not require advanced settings but  want a safe, reliable simple gate opener for small gates:

  • Highly reliable opener: can work in continuous cycles  without overheating
  • Features 2 working mode options: step by step ( push to open & push to close) or automatic closing with fixed pause time 30 sec.

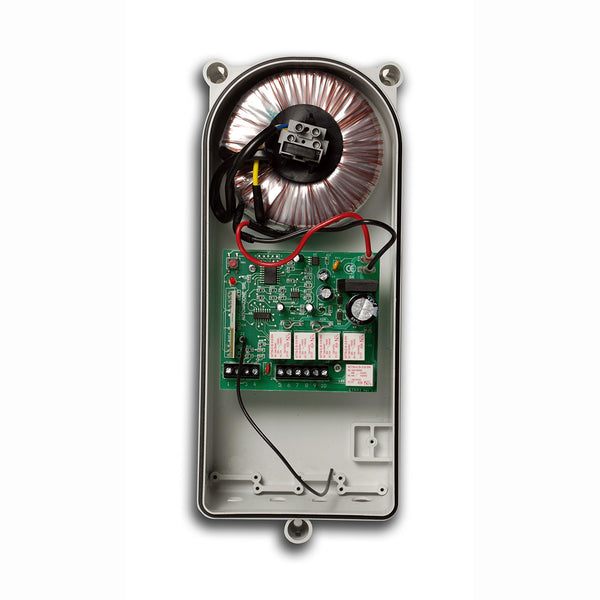

  • Small control unit with integrated toroidal transformer,  simple electronic board with on board radio receiver & antenna cable

  • Easy  self-storing  of the remotes controls by pushing one button

  • Made in Italy - All components are manufactured in the company to warranty high quality and reliability.

  • After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.

  • Quick and easy installation

  • The gate is automatically locked in closed position (irreversibile system).

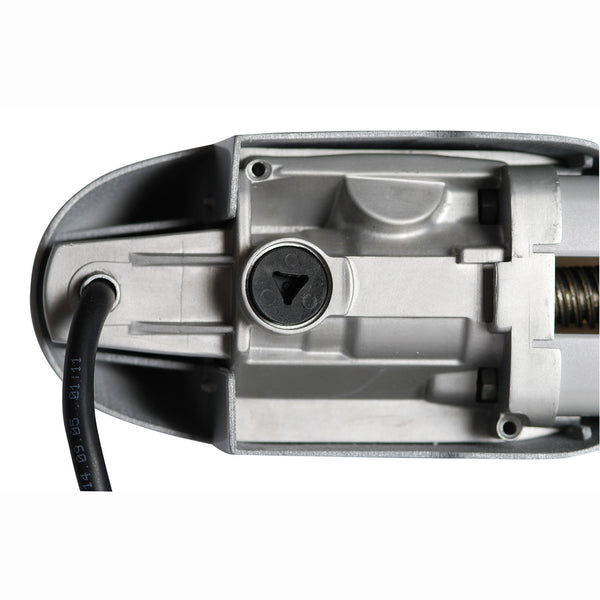

  • Manual release system by universal triangular key

  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request

  • Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)

ELECROMECHANICAL ACTUATOR SW400


Motor power supply

12V
dc motor 60W
max pushing & power 1200N
Stroke 400mm
motor speed 1,5 cm/sec
telescopic actuator -
working cycles limit continuous use/ no limits
working temperature -20°C/+50°C
max wing length 2m/6.5ft
max.wing weight 200kg/441lb
max. opening angle 125°
automatic wing lock  √ irreversible actuator
manual release system √ by triangular key
Compatible with  gate opening towards outside

NOTE: the actuator will stop by amperometric detection system: it therefore requires  mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400 in "FC" version are featured with on-board mechanical limits for the open wing position.

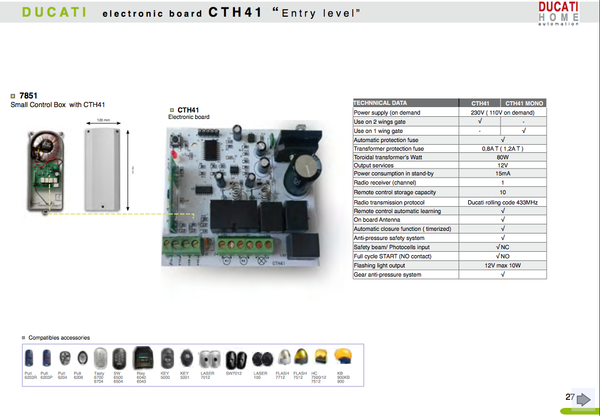

CTH41 ELECTRONIC BOARD TECHNICAL DATA


Main power supply

230-240V /50-60Hz or (110V/60Hz) (both variant of toroidal transformer are available. Select the desired version while ordering)
toroidal transformer's Watts 105W
protection fuse Automatic
transformer protection fuse 0,8AT (1,2AT for 110V transformer)
use on single or double wing gate 2 Wings gate only
output services 12V
stand-by power consumption 8mA
radio receiver 1 channel
remote controls channels storage capacity 10 codes
radio transmission protocol DUCATI rolling code
radio frequency 433,92MHz
remote control automatic learning
On board antenna
external antenna input -
automatic closure working mode √ with adjustable pause time up to 30 sec.
step by step working √ one pulse to open; one pulse to close
motor power adjustment -
Obstacle detection safety system(DUCO SAFE) obstacle detection
In compliance with EU-CE norms
timerized courtesy light output -
flashing light output √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output -
safety beam-photocells input (NC contact) √ NC normally closed contact
A full cycle START input(NO contact)
pedestrian cycle START input ( N contact) -
output for optional additional back-up battery charge management & module CMBAT -

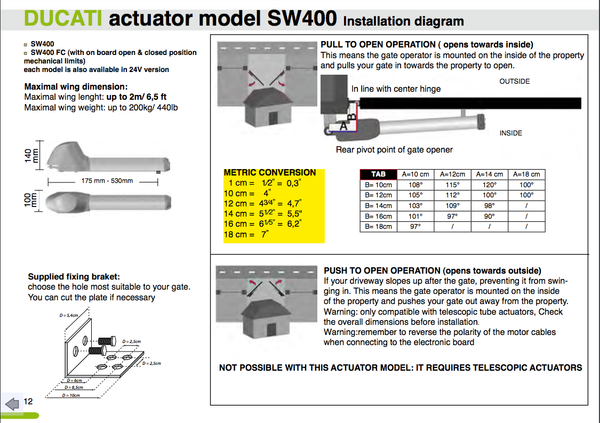

CLICK HERE to download the SW400 actuator's installation diagram

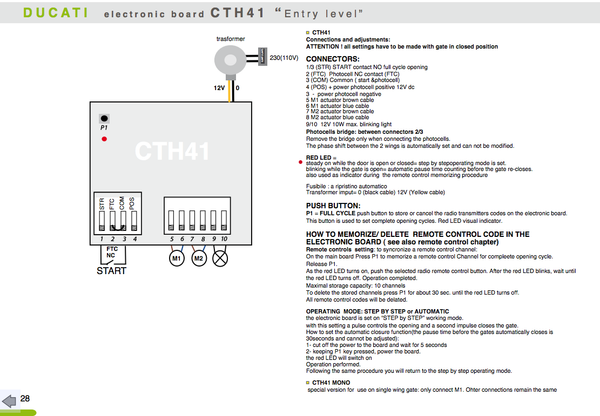

CLICK HERE  to download the CTH41 electronic board wiring diagram

CLICK HERE to download full swing gate openers installation manual
