HC619 PRO MONO
Ideal for 1 wing swing gates up to 3m/10ft
DUCO FAST technology
- Quick closing and opening
- Open your door faster than ever!
- Powerful & reliable high speed motors faster than ever. Ensures faster opening and closing of your door
- The perfect answer where rapid manoeuvres are required, ensuring the shortest standing time and the maximum safety: for urban high-traffic areas ensures prompt action where rapid intervention is needed.
DUCOSOL Technology
Versatile, operates by 3 type of power supply
- A.C. 110/230V 60/50Hz
- By emergency battery
- By solar panel
Ensures 100% autonomous use even where AC power is unavailable
Highly reliable as featured with Ducati's reduced consumption technology: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!
SOFT STOP
- The opener stops in both directions decreasing the speed and avoiding unwished banging closing.
- This prevent from usury and ensure long life to your opener and door.
- This function prevents the door banging closing
ARS (Automatic Reversal System)
Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.
DUCO SAFE
obstacle detection safety system guarantees maximal safety of use to your family
SELF LOCK TECHNOLOGY

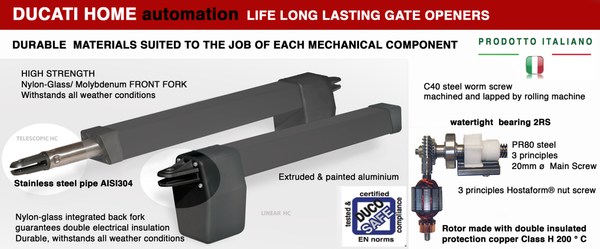

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

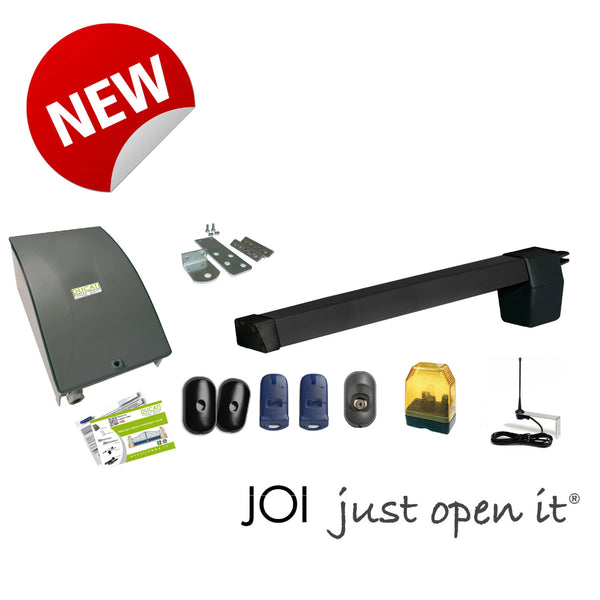

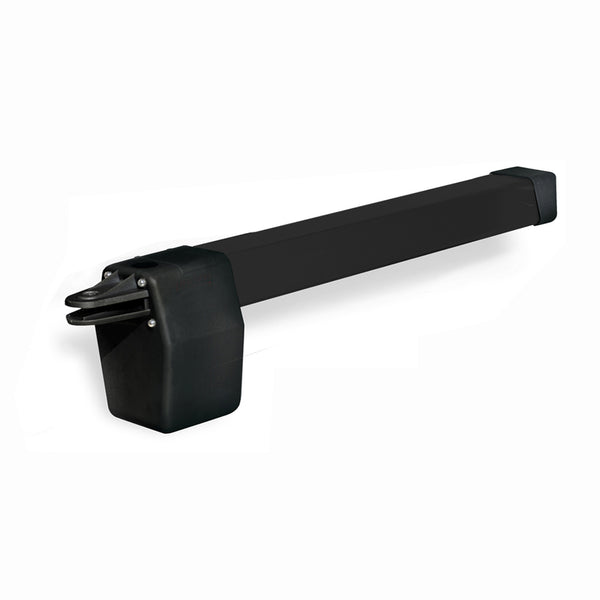

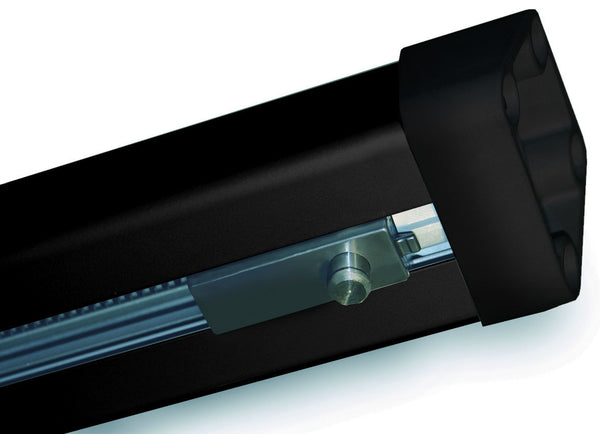

- 1x HC618- 600mm stroke electromechanical actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq
- set of actuator's fixing brackets

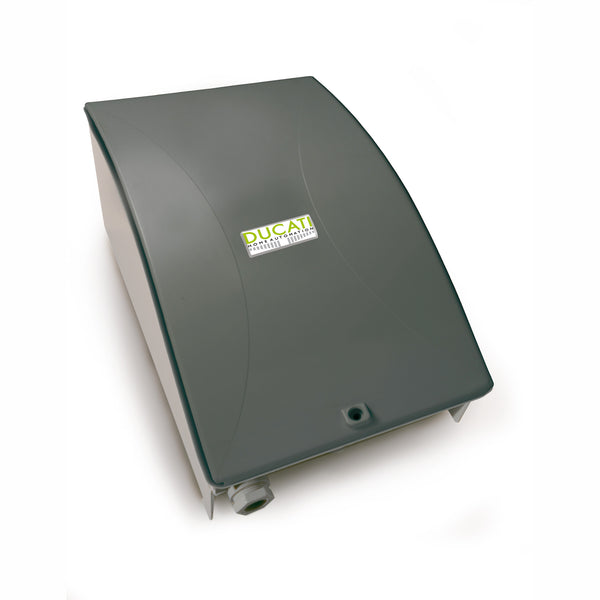

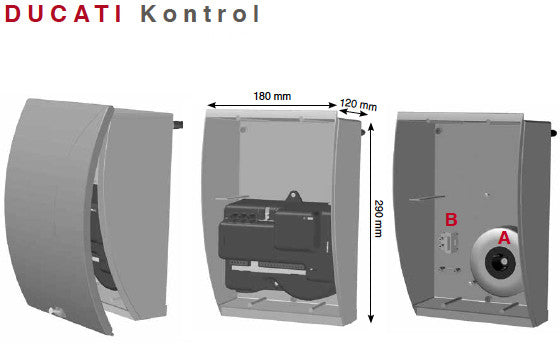

- 1x KONTROL 9048 large control box with electronic board, toroidal transformer, integrated radio receiver

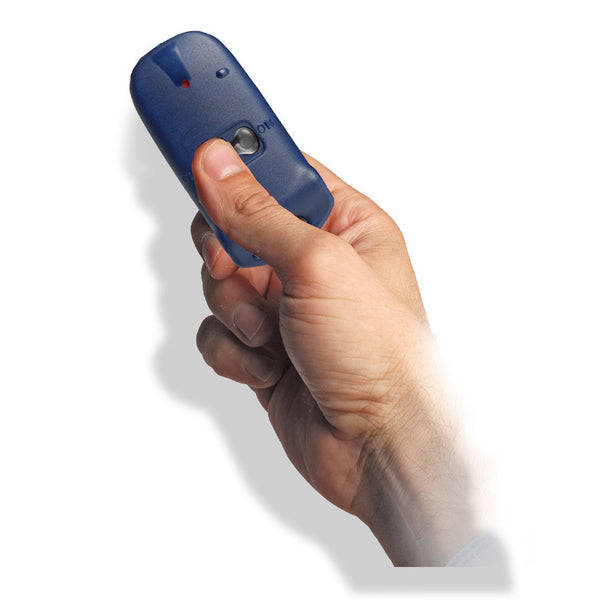

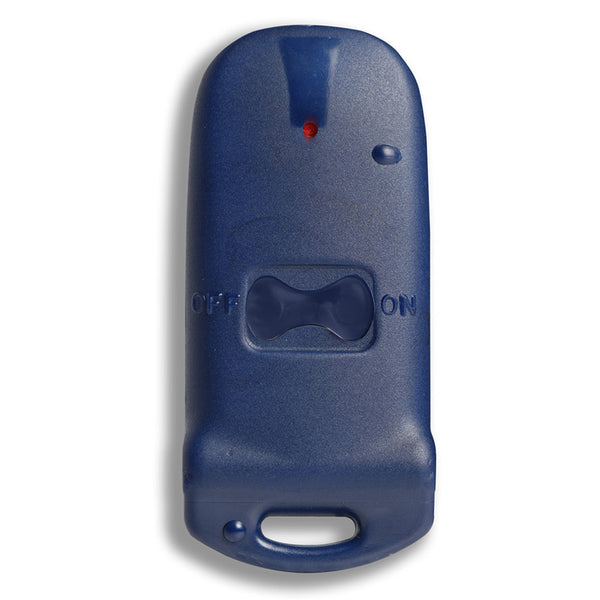

- 2x 6203Roll - 2 buttons 433,92 Mhz rolling code radio transmitters

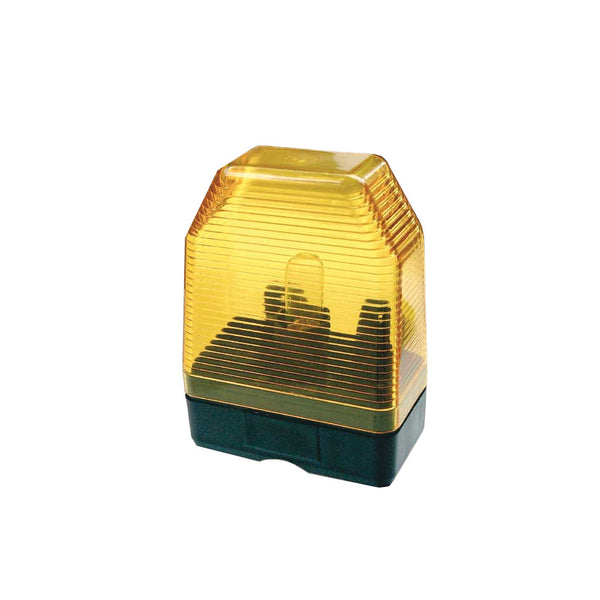

- 1x HC7500 - blinking light 12V ( 24V for 24V variant)
- 1x SW5000 - key switch

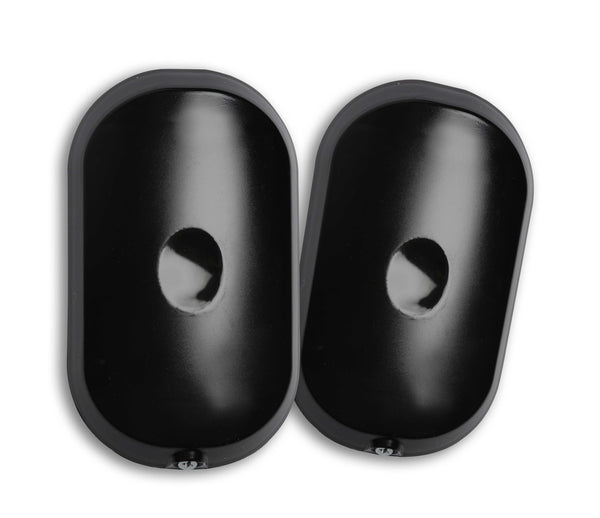

- 1 pair of safety infrared photocells
- 1 external antenna
- 1x key for manual emergency release
- 1x instruction manual

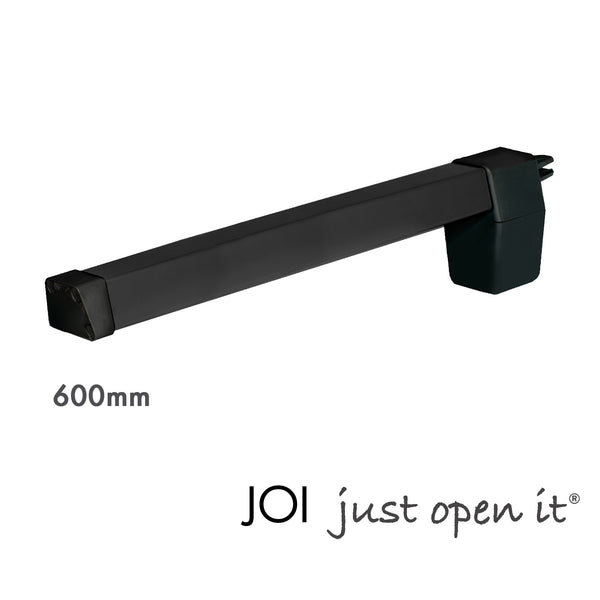

- POWERFUL 600mm stroke electromechanical actuators
- Quick closing and opening. Open your door faster than ever !
- FAST speed with SOFT STOP
- Obstacle detection sensitivity adjustment
- SOFT STOP adjustment: you can postpose/anticipate the slowdown phase
- Inverse movement by obstacle detection while closing
- Obstacle detection sensitivity adjustment

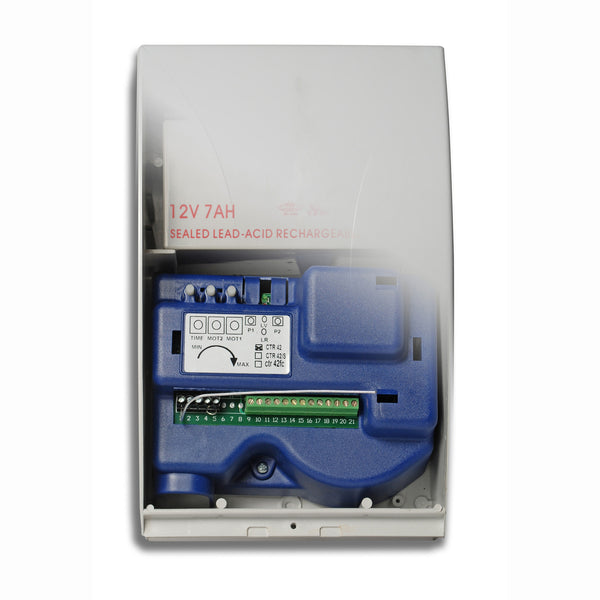

- Control unit with integrated battery housing compartment
- Integrated battery charger on board: just ready for connection to 1 x 12V battery ( for 12V version) or 2 x 12V emergency batteries in series connected( for 24V version). In case of power failure works autonomously up to 3 days
- Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. NOTE: For 12V version add a standard 12V battery + 1 x 12V min.10W solar panel. For 24V version add 2 x 12V batteries in series connected + 24V min. 20W solar panel. No extra module needed
- Low consumption technology: only 0,007A stand-by consumption for the 12V version and only 0,014A ! Protect the environment, reduces waste of energy and gives long lasting autonomy with battery /solar panel use
- Adjustable motor power/ obstacle detection sensitivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
- Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
- Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
- heavy duty opener: can work in continuous cycles without overheating
- Adjustment of the time lag between the two doors
- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) can be controlled by remote control or wired control.
- Possibility of connecting an external timed courtesy light (example: garden light)
- The gate is automatically locked in closed position ( irreversibile system).
- Electro-lock is not needed, but recommended for wing longer than 2,8m each. Warning: Compatible only with electric-lock with Booster ( to convert dc output into ac electrolock power supply)
- heavy duty opener: can work in continuous cycles without overheating
-

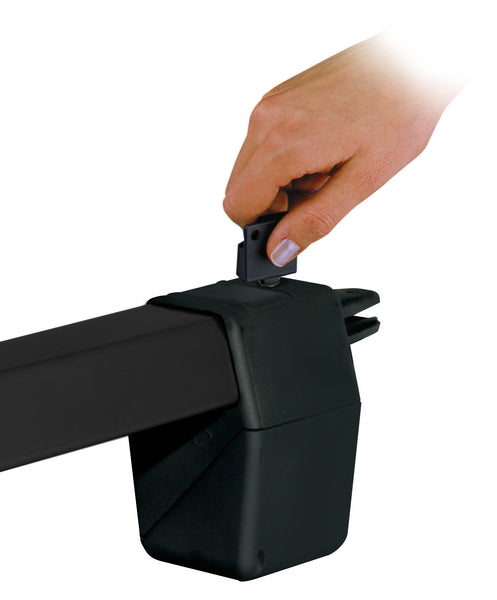

Manual release system by universal triangular key
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
- After sale service and assistance provided directly by manufacturer without intermediaries
- Easy self-storing of the remotes controls by pushing one button
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
ACTUATOR TECHNICAL DATA

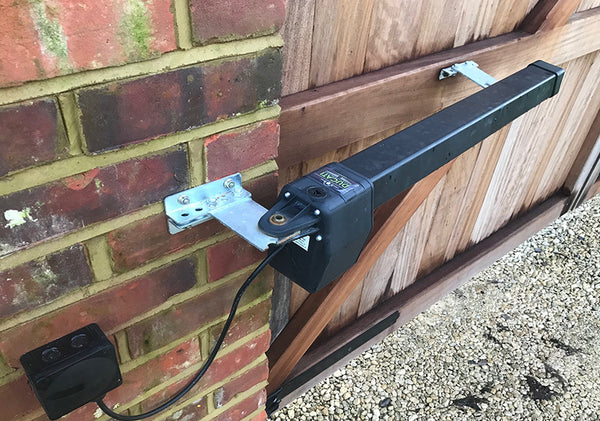

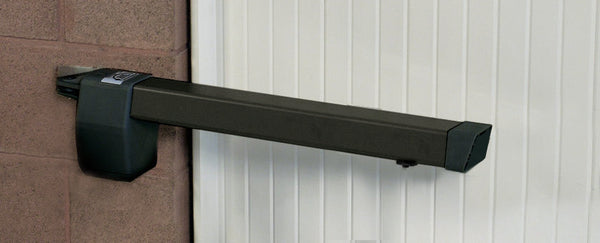

ELECROMECHANICAL ACTUATOR HC618
|
|
|
| dc motor (24V version) | 60W (120W) |
| max pushing & power (24V version) | 1200N (2400N) |
| Stroke | 600mm |
| motor speed | 2 cm/sec |
| electromechanical actuator | √ |
| working cycles limit | continuous use/ no limits |
| working temperature | -20°C/+50°C |
| max wing length | 5m |
| max.wing weight (24V version) | 500kg |
| max. opening angle | 137° |
| automatic wing lock | √ irreversible actuator |
| manual release system | √ by triangular key |
| Max "C" measure (see pillar installation diagram hereunder) to install the actuator avoiding any masonry work on the pillar | 19 cm |
| Compatible with gate opening towards outside | √ |
NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC618 in "FC" version are featured with on-board mechanical limits for the open wing position.
CTH48 ELECTRONIC BOARD TECHNICAL DATA
(solar panel & battery management on board)
|
|
Versatile, operates by 3 type of power supply
|
| toroidal transformer's Watts | 105W output 0-12V-24V |
| protection fuse
|
√10AF |
| transformer protection fuse | 0,8AT (1,2AT for 110V transformer) |
| use on single or double wing gate | √ |
| output services
(24V version)
|
12V ( 24V) |
| stand-by power consumption (24V version) | 0,007A (0,012A) |
| radio receiver | 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening) |
| remote controls channels storage capacity | 20 codes |
| radio transmission protocol | DUCATI rolling code |
| radio frequency | 433,92MHz |
| remote control automatic learning | √ |
| on board antenna | √ |
| external antenna input | √ |
| automatic closure working mode | √ with adjustable pause time up to 100 sec. |
| step by step working | √ one pulse to open; one pulse to close |
| motor power adjustment | √ by potentiometer |
| SOFT STOP | √ adjustable by potentiometer |
| Speed | EXTRA FAST 2cm/sec |
| Obstacle detection safety system (DUCO SAFE) |
|
| ARS auto reversal system on obstacle detection | √ |
| Wings time lag adjustment | √ |
| In compliance with EU-CE norms | √ |
| timerized courtesy light output (24V version) | √ 12V max 10W (24V max. 10W) |
| output for remote advising light of gate status | √ 12V max 10W (24V max. 10W) light on while gate is open, light off while gate is closed, fast blinking while closing, slow blinking while opening |
|
flashing light output (24V version) |
√ 12V max.10W lamp (24V max.10W) blinks quickly while closing, blinks slowly while opening |
| electric lock output | √ additional booster needed to convert dc electrolock output into ac |
| safety beam-photocells input (NC contact) | √ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120 |
| full cycle START input (NO contact) | √ |
| pedestrian cycle START input ( NO contact) | √ |
| Emergency STOP button input (NC contact) | √ |
CLICK HERE to download the general instruction manual

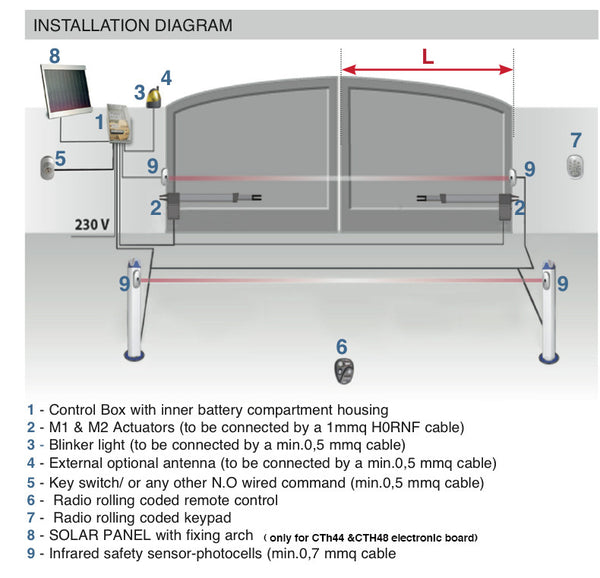

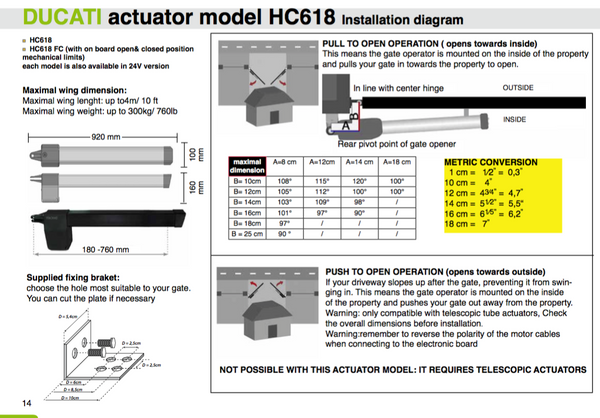

HC618 actuator installation diagram
CTH48 Manual electronic board wiring diagram
6203Roll remote control instructions
