Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
ELEGIR LA VARIANTE DEL PRODUCTO
€ 289.00EUR

Envío / IVA se calculan a check out y depende de la dirección de entrega

  • Simple and essential basic model, "first price-entry level" kit
  • For small 2-leaf swing gates max. 1.8 m / 150 kg each leaf
  • For well balanced gate with inward opening
  • 12V dc electromechanical actuators with shuttle drive
  • Control unit with a good range of adjustments available
  • Functions: pedestrian access, compatible with emergency battery, electric lock, courtesy light
  • DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
  • ECOLOGICAL: energy saving. absorption in stand-by: only 0.009 A

Ducati's  entry level package.

Double wing swing gate up to 2 x 2m/6,5ft each wing (Total gate length up to 4m/13ft)

  • Ducati's modern design DC gate opener
  • featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family. Original Made in Italy.
  • For those who desire a very uncomplicated gate opener, easy to be installed

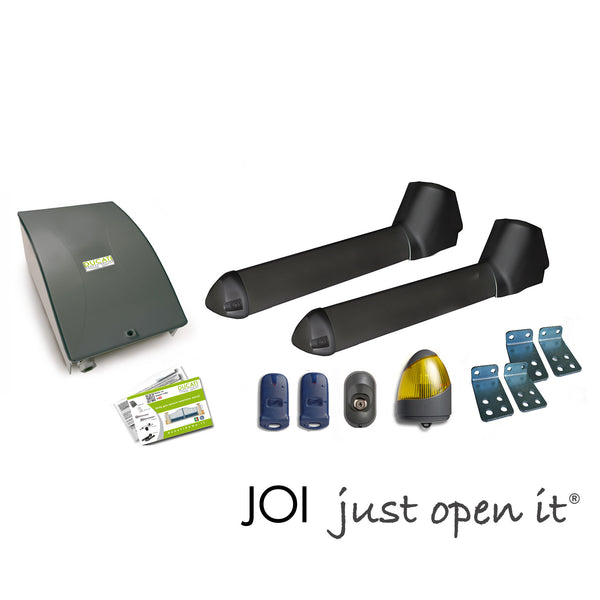

  • Ideal for  double wing swing gate

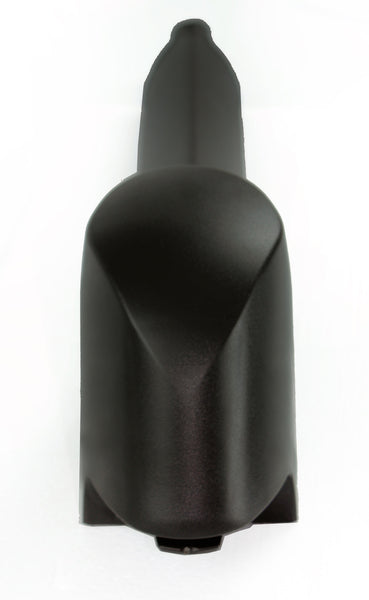

  • 2xSW400 - 400mm stroke linear actuators

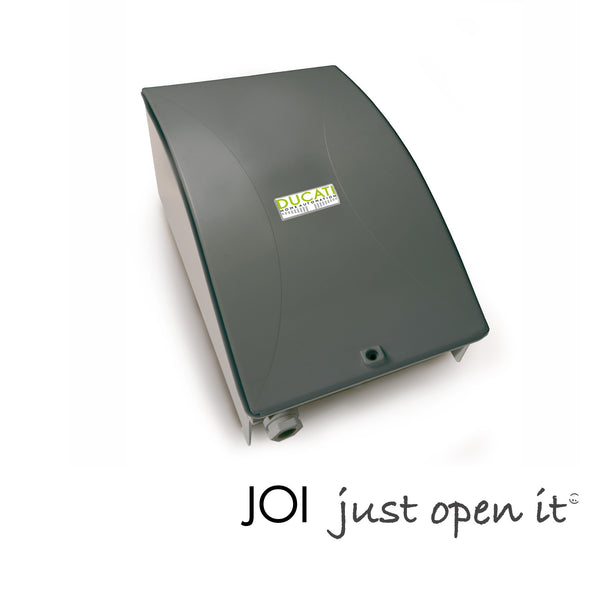

  • 1x7855Rol - large control box with electronic board CTH42+ transformer

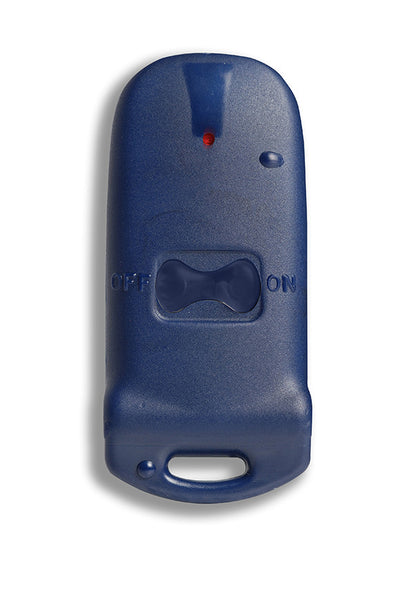

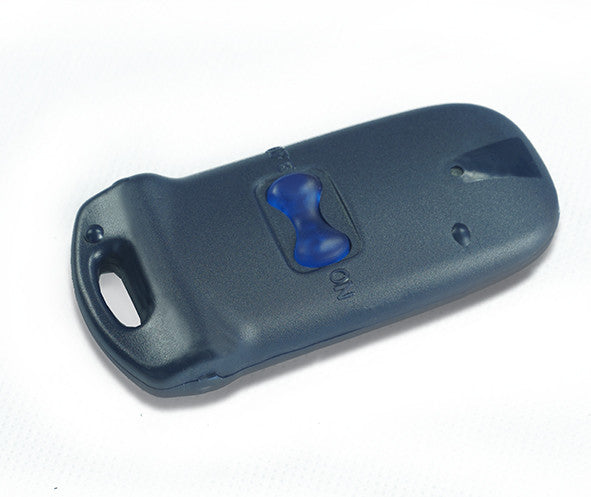

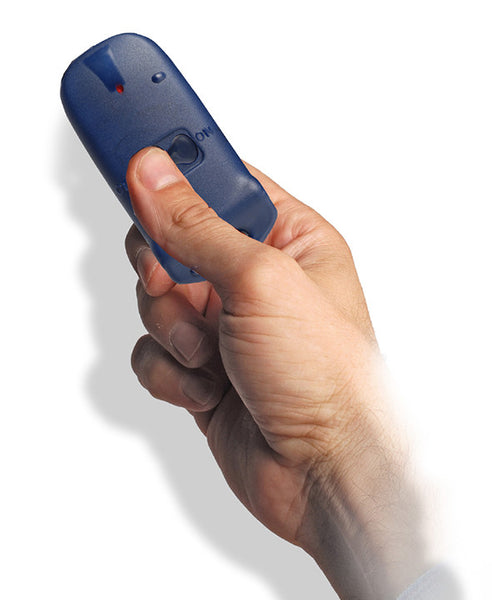

  • 2x 6203Roll - 2 buttons 433 Mhz rolling code transmitters

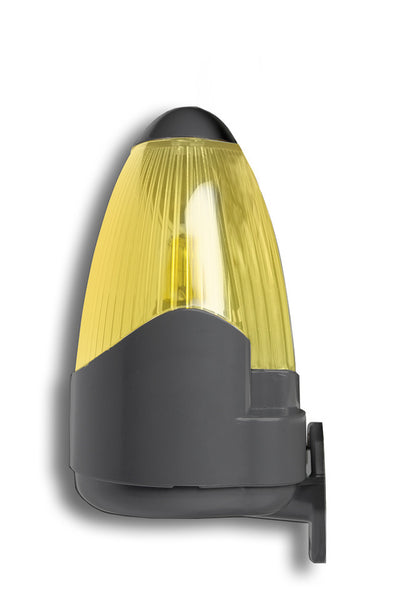

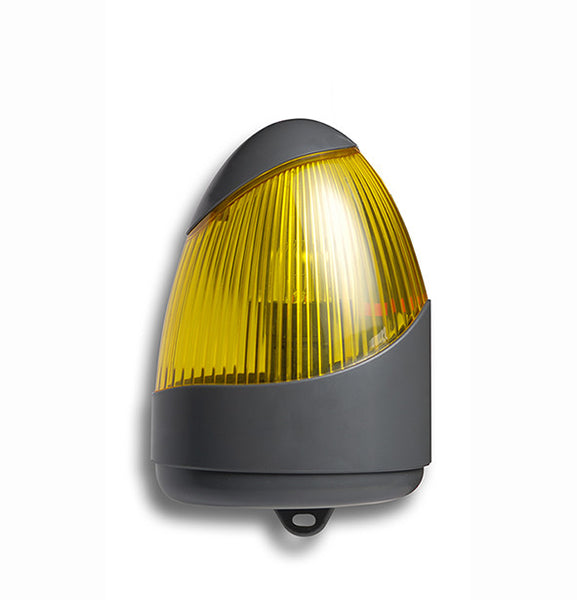

  • 1x SW7500 - blinking light 12V

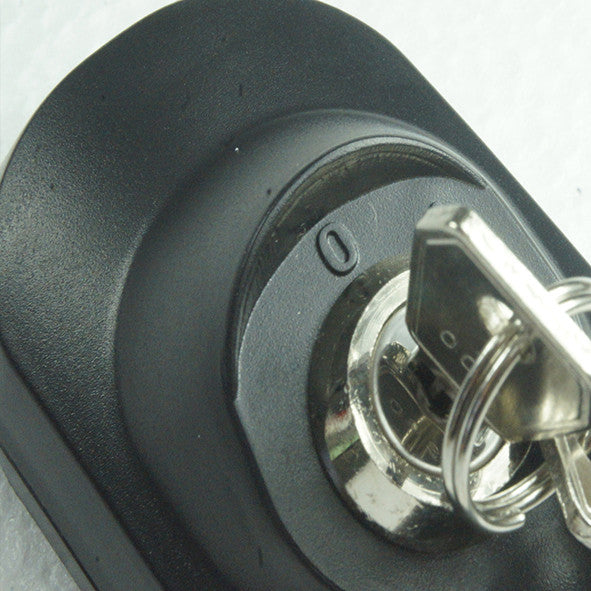

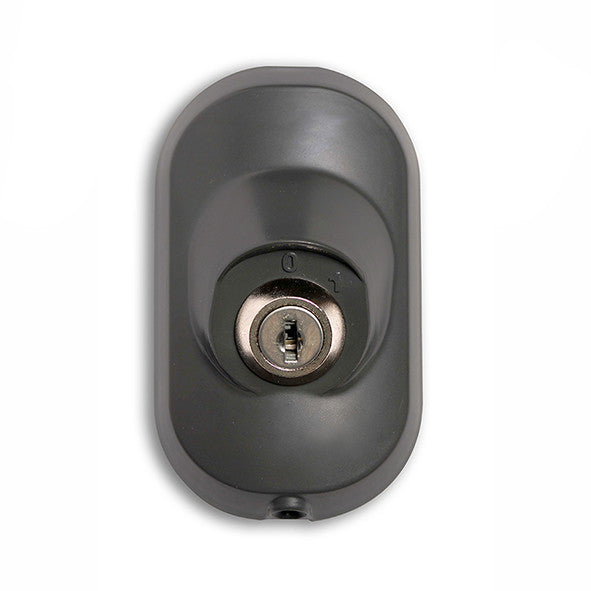

  • 1x SW5000 - key switch
  • 1 set of actuators fixing plates
  • 1x instruction manual

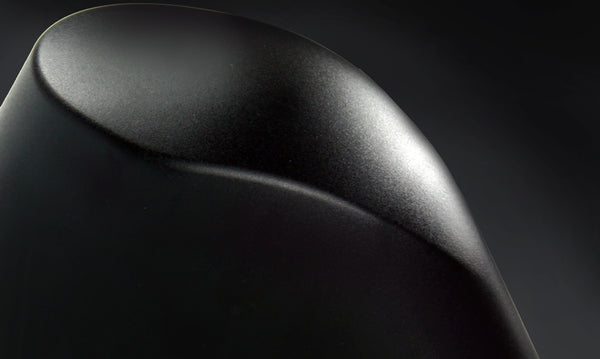

This classic DUCATI  "vintage" design ENTRY LEVEL gate operator features middle level functions for an easy installation with a good range of adjustments availables

AUTO-LOCK TECHNOLOGY

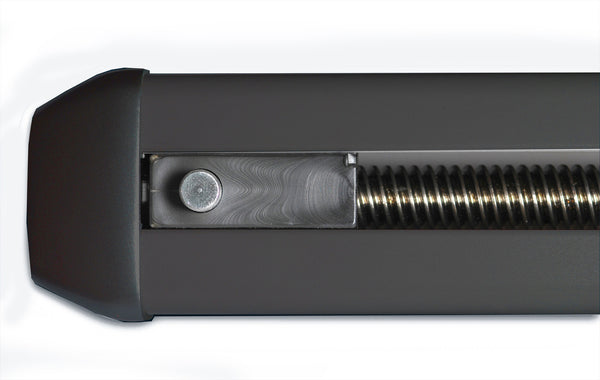

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

For those who  do not require advanced settings but  want a safe, reliable simple gate opener for small gates:

AUTO-LOCK TECHNOLOGY

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

DUCO SAFE

Obstacle detection safety system guarantees maximal safety of use to your family



  • Telescopic actuators ensure long-lasting performances and less stress on gate hinges
  • Ideal for a safe, quick, and easy installation: the system works in DC current and is electrocution risk-free.
  • Possibility of connecting an external timed courtesy light (example: garden light)
  • 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
  • Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
  •  Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
  • Easy  self-storing  of the remotes controls by pushing one button
  • Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate the potentiometer related to each motor.
  • Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
  • Made in Italy - All components are manufactured by the company to warranty high quality and reliability.
  • After-sale service and assistance provided directly by manufacturer without intermediaries in order to provide a quick and immediate solution to any demand.
  • The gate is automatically locked in the closed position (irreversible system).

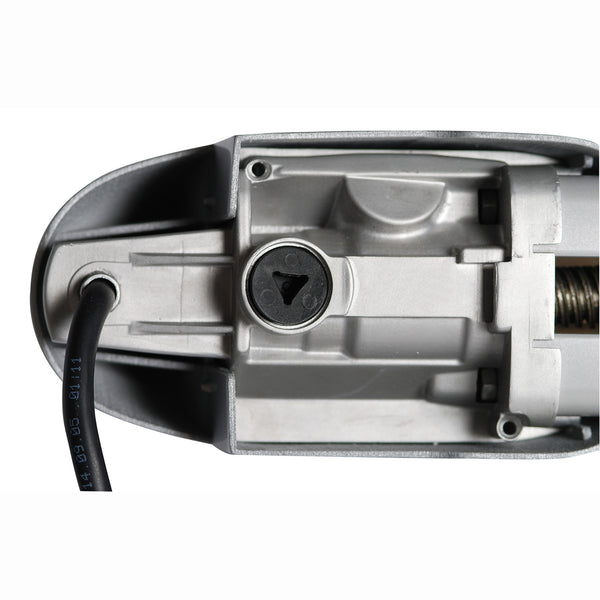

  • Manual release system by universal triangular key
  • Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
  • Totally in house designed software and hardware are focused on reducing energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High-quality radio receiver hybrid
  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

ACTUATOR  TECHNICAL DATA

ELECROMECHANICAL ACTUATOR SW400


Motor power supply

12V
dc motor 60W
max pushing & power 1200N
Stroke 400mm
motor speed 1,5 cm/sec
telescopic actuator -
working cycles limit continuous use/ no limits
working temperature -20°C/+50°C
max wing length 2m/6.5ft   each leaf
max.wing weight 200kg/441lb each leaf
max. opening angle 125°
automatic wing lock  √ irreversible actuator
manual release system √ by triangular key
Compatible with  gate opening towards outside

NOTE: the actuator will stop by amperometric detection system: it therefore requires  mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400 in "FC" version are featured with on-board mechanical limits for the open wing position.

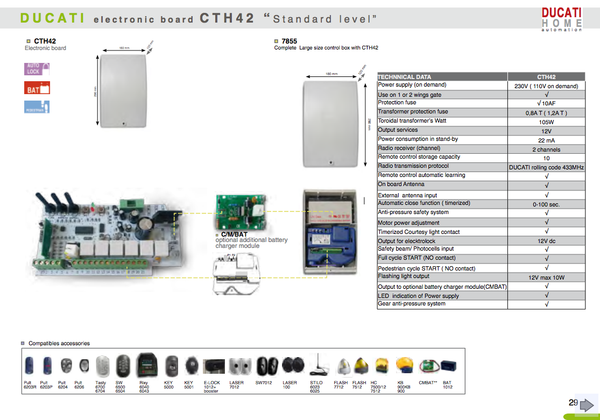

CTH42 ELECTRONIC BOARD TECHNICAL DATA


Main power supply

230-240V /50-60Hz or (110V/60Hz) (both variant of toroidal transformer are available. Select the desired version while ordering)
toroidal transformer's Watts 105W
protection fuse Automatic
transformer protection fuse 0,8AT (1,2AT for 110V transformer)
use on single or double wing gate 2 Wings gate only
output services 12V
stand-by power consumption 8mA
radio receiver 1 channel
remote controls channels storage capacity 10 codes
radio transmission protocol DUCATI rolling code
radio frequency 433,92MHz
remote control automatic learning
On board antenna
external antenna input -
automatic closure working mode √ with adjustable pause time up to 30 sec.
step by step working √ one pulse to open; one pulse to close
motor power adjustment -
Obstacle detection safety system(DUCO SAFE) obstacle detection
In compliance with EU-CE norms
timerized courtesy light output -
flashing light output √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output -
safety beam-photocells input (NC contact) √ NC normally closed contact
A full cycle START input(NO contact)
pedestrian cycle START input ( N contact) -
output for optional additional back-up battery charge management & module CMBAT -

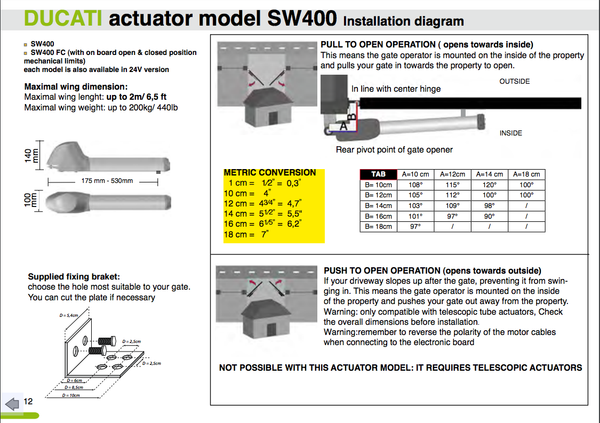

CLICK HERE to download the SW400 actuator's installation diagram

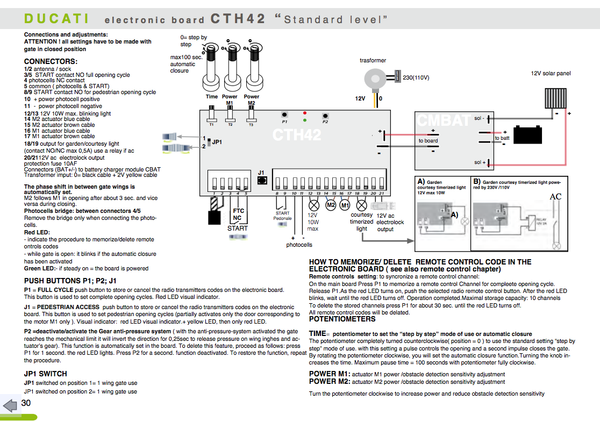

CLICK HERE  to download the CTH42 electronic board wiring diagram

CLICK HERE to download full swing gate openers installation manual
