SW3000
Ducati's modern design swing gate opener
Swing gates up to 1,8m/6ft each wing
- Ducati's modern design DC gate opener
- featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family. Original Made in Italy.
- For those who desire a very uncomplicated gate opener, easy to be installed

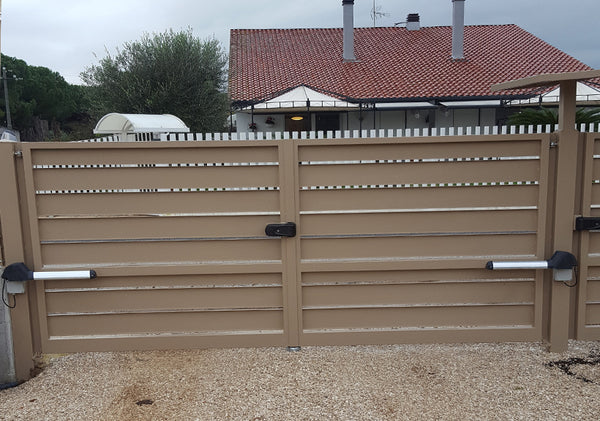

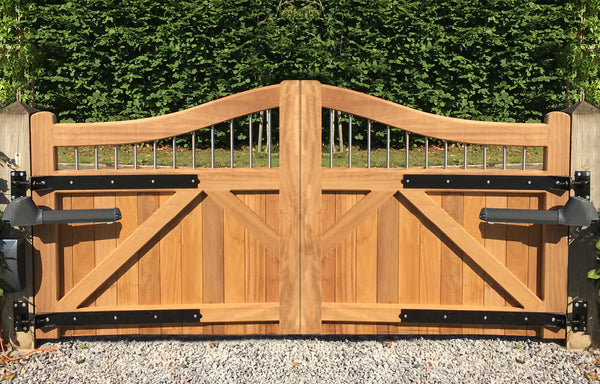

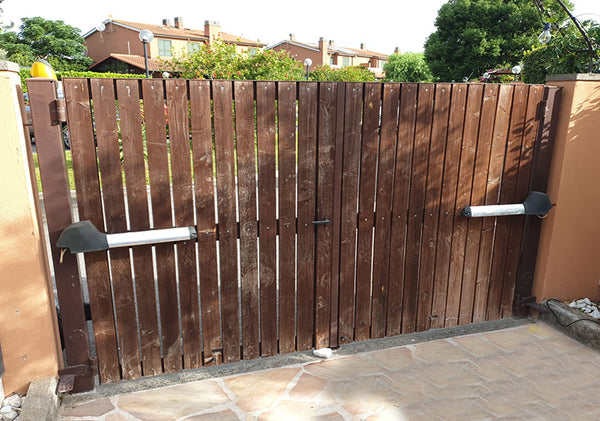

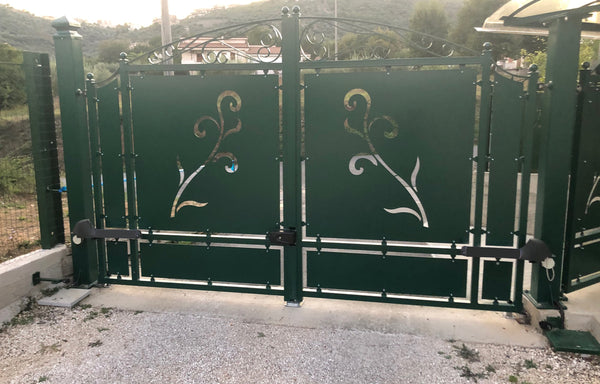

- Ideal for double wing swing gate

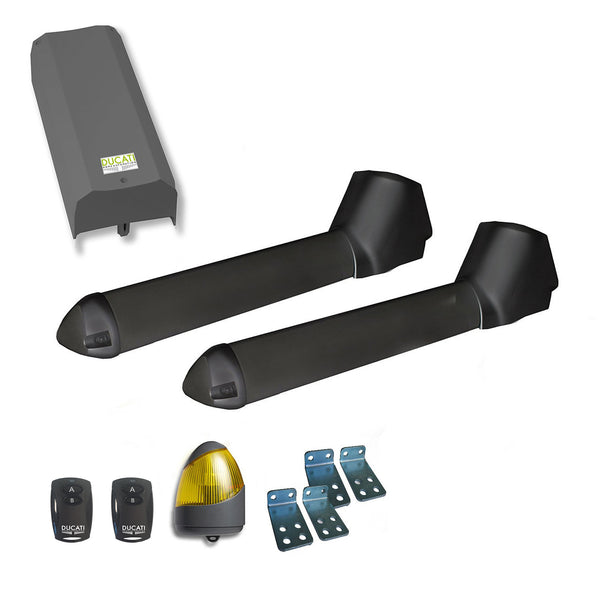

- 2 x SW400 - 400mm stroke 12V actuators

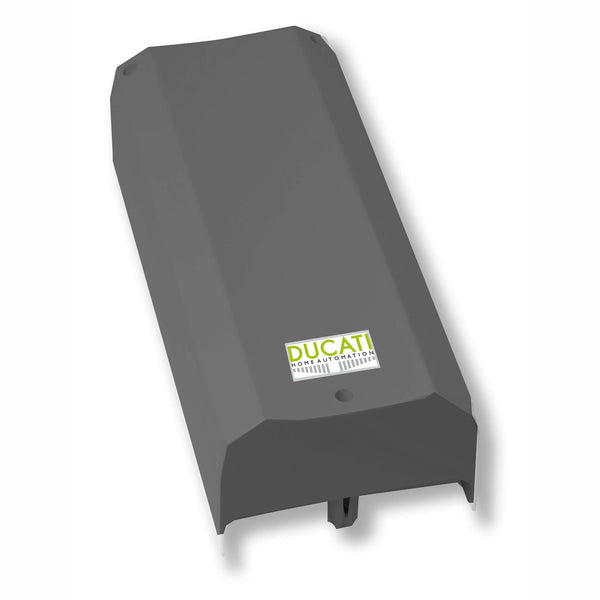

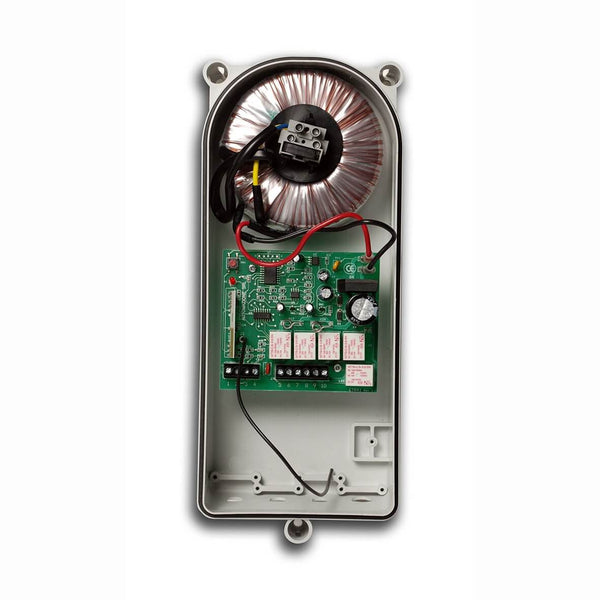

- 1 x 7851Rol - Large control box with electronic board CTH41+ transformer
- 2 x 6203Roll - 2 buttons 433 Mhz rolling code transmitters

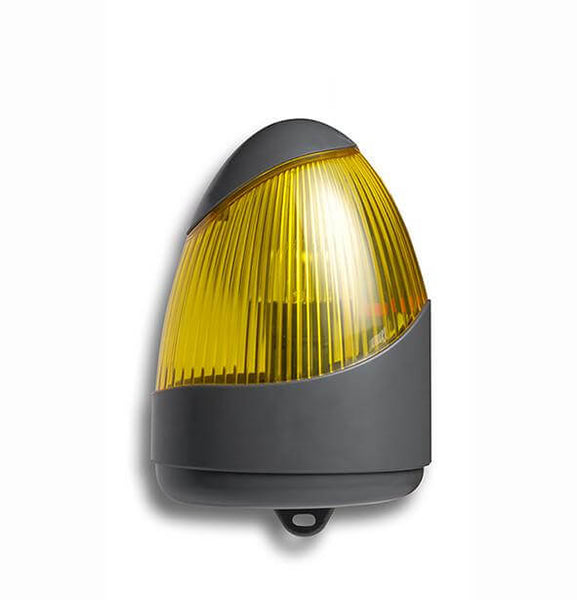

- 1 x SW7500 - blinking light 12V
- 1 x SW5000 - key switch
- 1 set of actuators fixing plates
AUTO-LOCK TECHNOLOGY

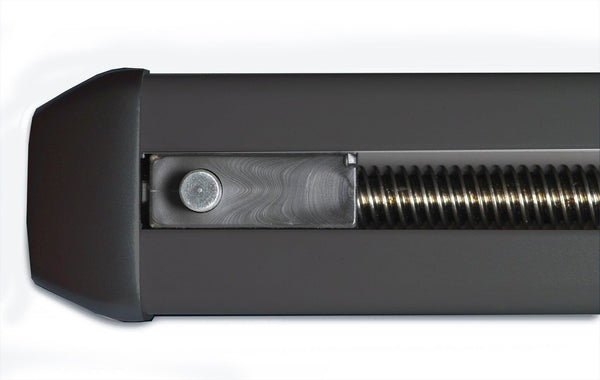

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation
DUCO SAFE
Obstacle detection safety system guarantees maximal safety of use to your family

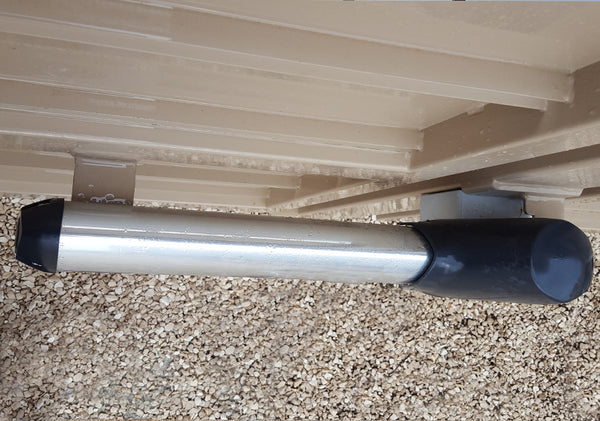

- Telescopic actuators ensures long lasting performances and less stess on gate hinges
- Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
- Possibility of connecting an external timed courtesy light (example: garden light)
- 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
- Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
- Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.

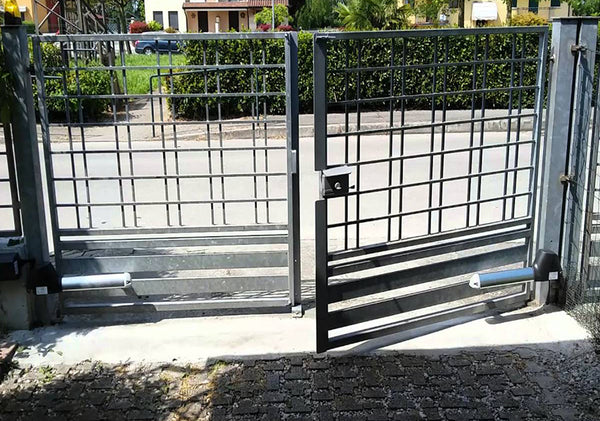

- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
- After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
- The gate is automatically locked in closed position (irreversibile system).

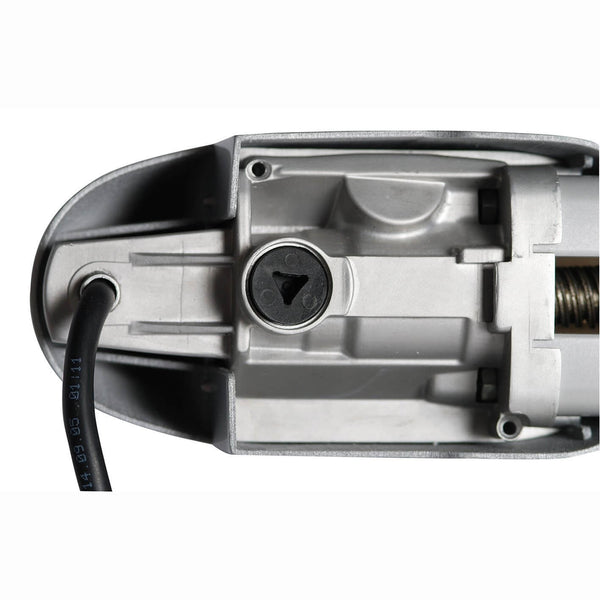

- Manual release system by universal triangular key
- Safety is ensured by a sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
Motor power supply | 12V |
dc motor | 60W |
max pushing & power | 1200N |
Stroke | 400mm |
motor speed | 1,5 cm/sec |
telescopic actuator | - |
working cycles limit | continuous use/ no limits |
working temperature | -20°C/+50°C |
max wing length | 2m/6.5ft each leaf |
max.wing weight leaf | 200kg/441lb each leaf |
max. opening angle | 125° |
manual release system | √ by triangular key |

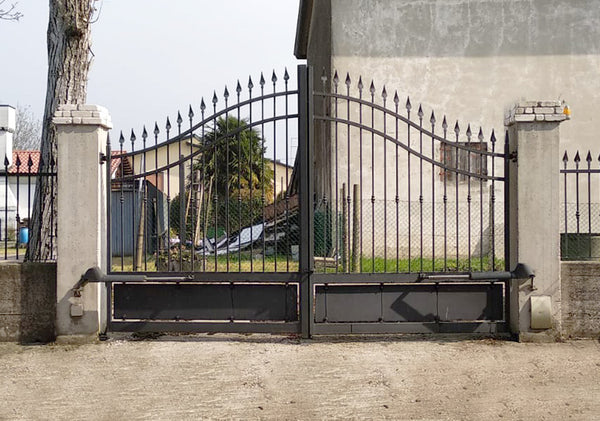

Compatible with gate opening towards outside | √ |
NOTE: the actuator will stop by amperometric detection system: it therefore requires; mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400 in "FC" version are featured with on-board mechanical limits for the open wing position.
CLICK HERE to download the SW400 actuator's installation diagram
CLICK HERE to download the CTH41 electronic board wiring diagram
CLICK HERE to download full swing gate openers installation manual
