Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
ELEGIR LA VARIANTE DEL PRODUCTO
€ 419.00EUR

Envío / IVA se calculan a check out y depende de la dirección de entrega

  • The best-selling model in the classic range for over 25 years
  • For 2-leaf swing gates up to 3.5m max 350 kg per leaf
  • Included in the kit a pair of photocells and external antenna
  • For gate that opens inwards or outwards
  • With 12V dc electromechanical motors 400mm stroke
  • Control unit with a good range of adjustments available
  • Functions: pedestrian access, compatible with electronic lock and courtesy light
  • DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
  • ECOLOGICAL: energy saving. absorption in stand-by: only 0.012 A

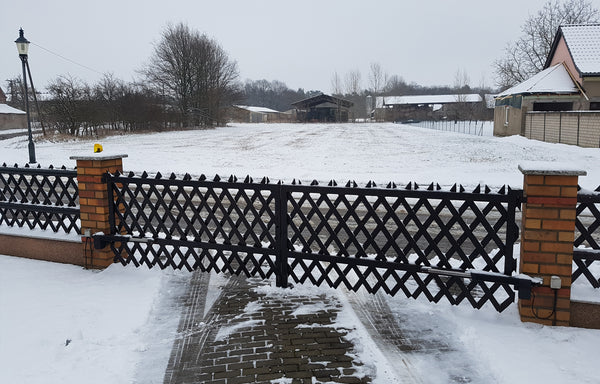

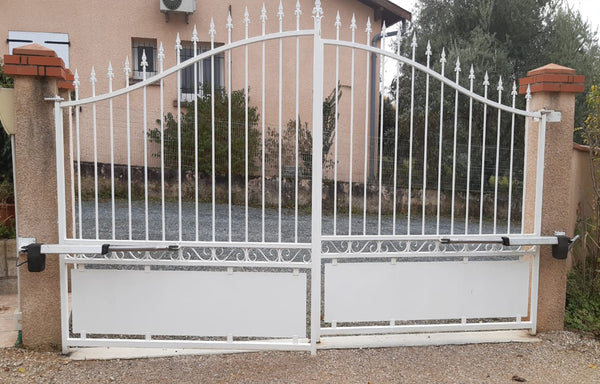

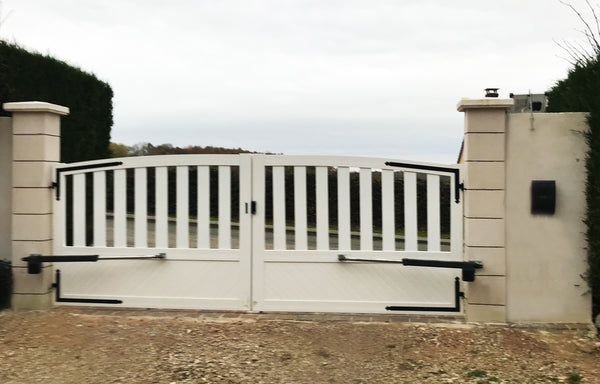

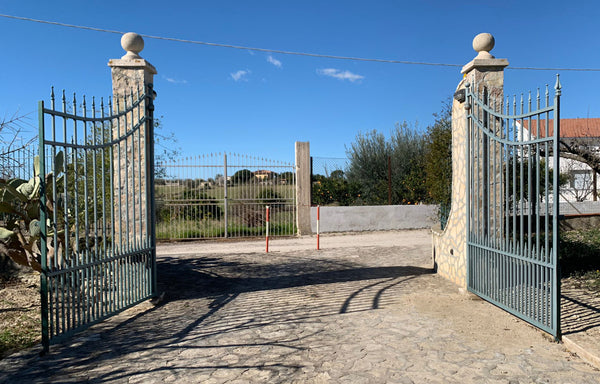

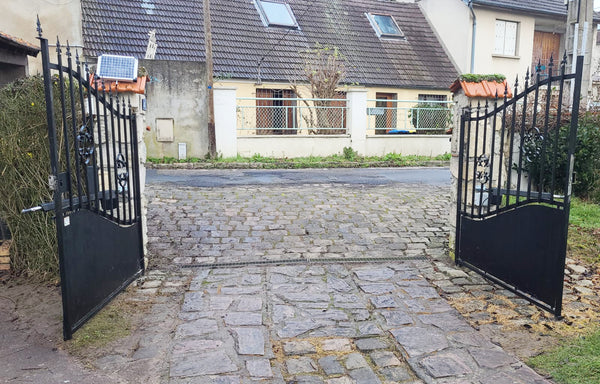

Ideal for double swing gates up to 2 x 3,5m/11,4ft each wing

Ducati's classic vintage design gate opener featuring:

 This classic DUCATI  "vintage" design gate operator features several advanced options combined with long 400mm stroke telescopic actuators for greatest strength and less mechanical stress of the system. The perfect heavy duty gate opener.

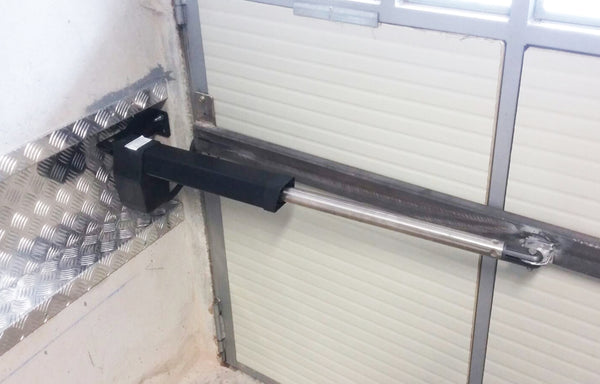

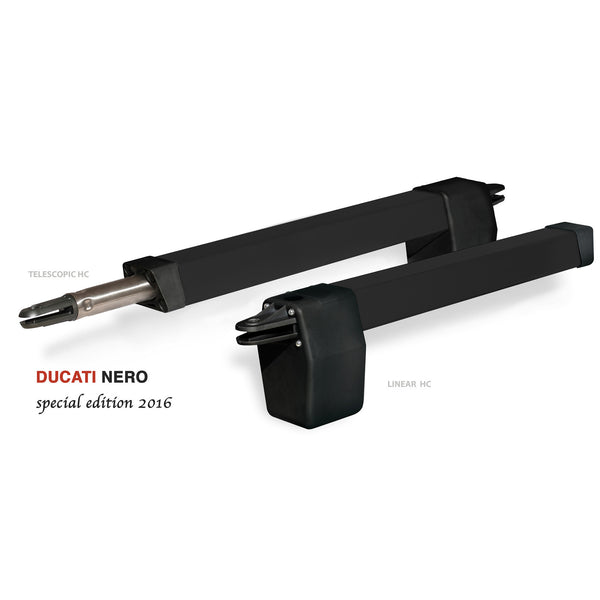

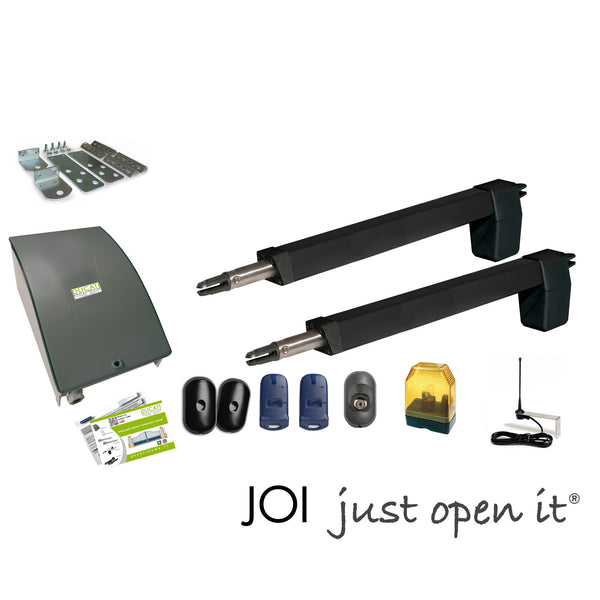

  • 2x HC412 - 400mm stroke 12V  telescopic electromecanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq

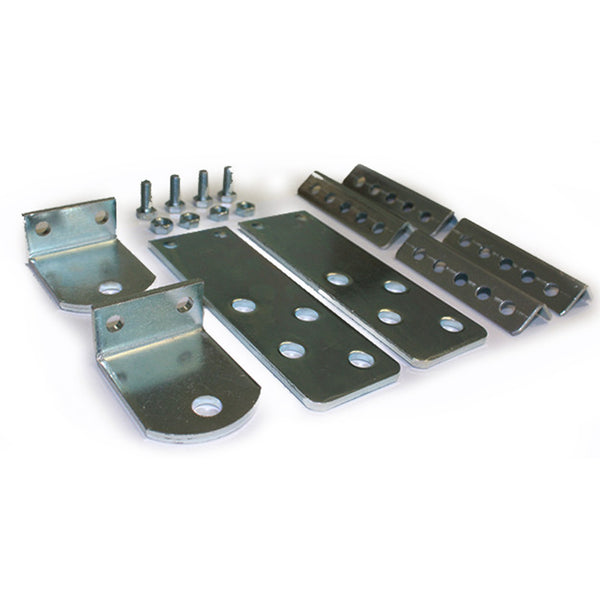

  • set of actuator's fixing brackets

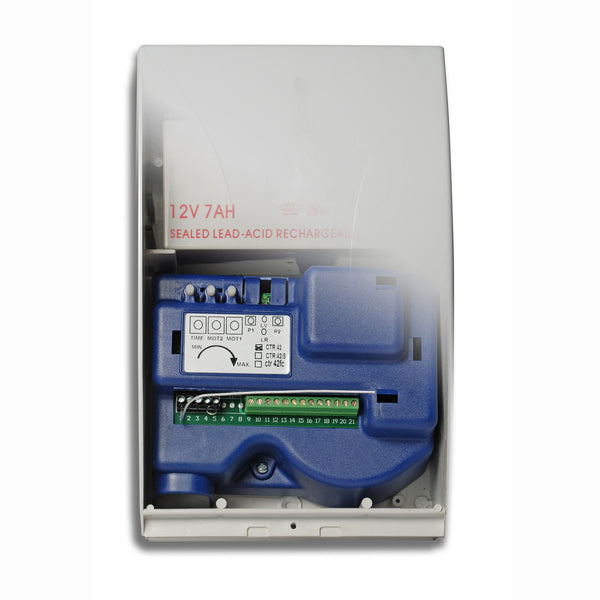

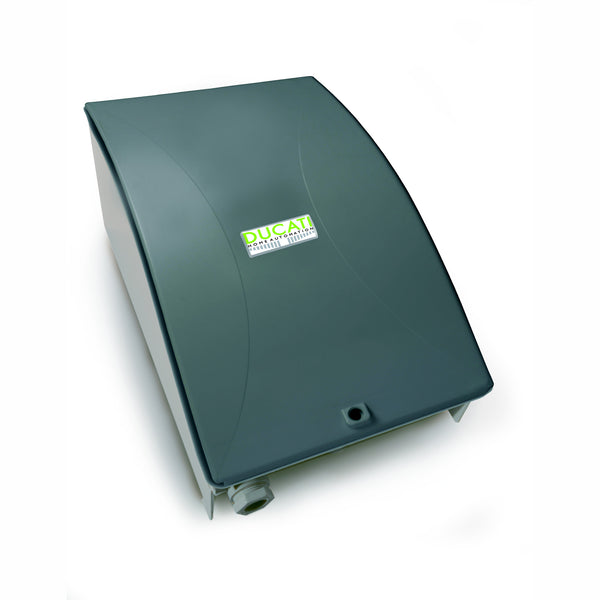

  • 1x 7855Rol - large control box with electronic board CTH42, toroidal transformer, integrated radio receiver

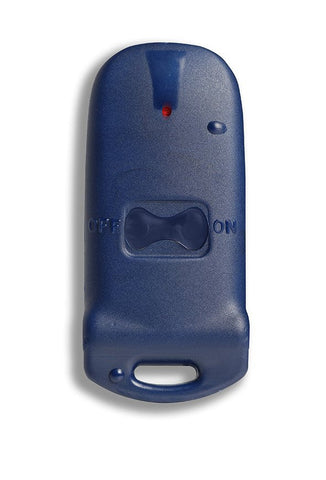

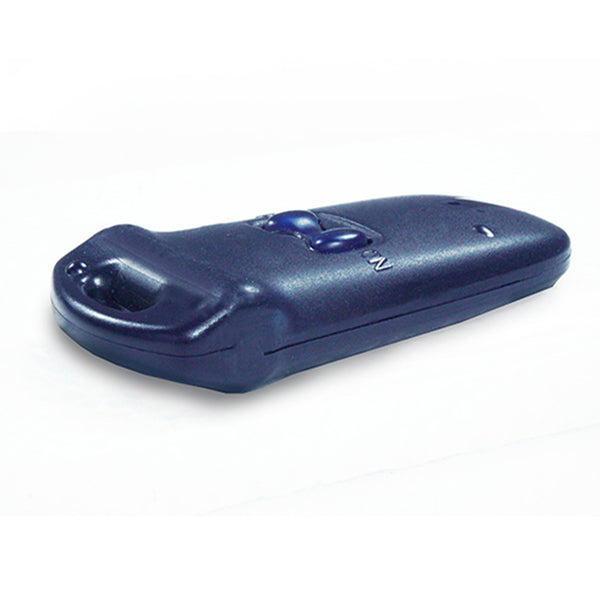

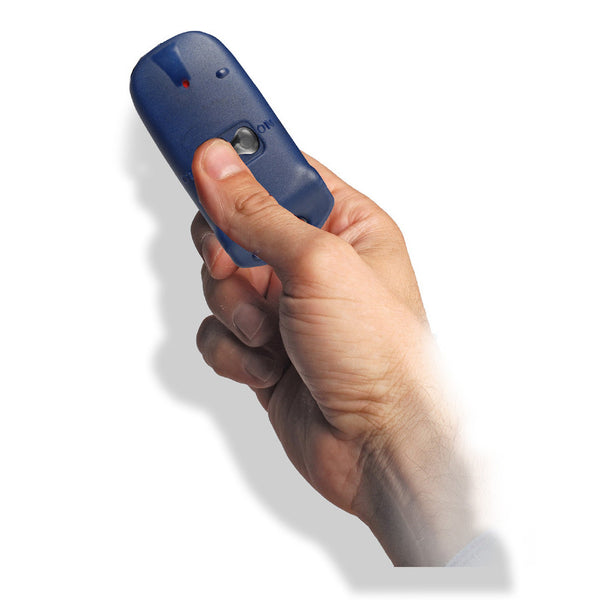

  • 2x 6203Roll - 2 buttons 433,92 MHz rolling coded radio transmitters

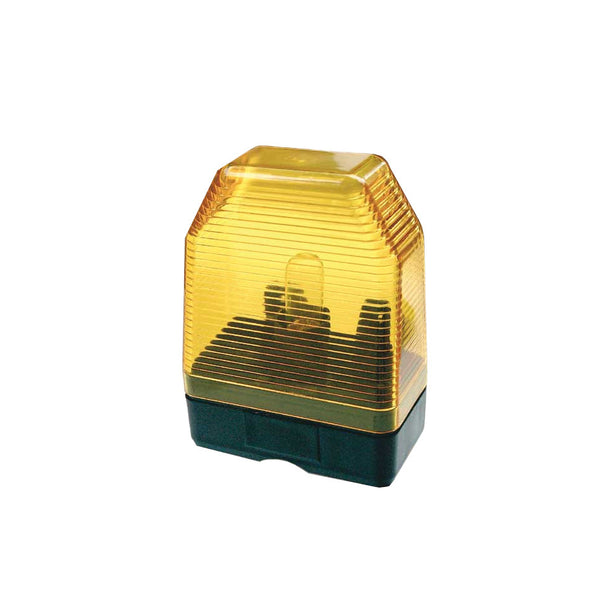

  • 1x HC7500 - blinking light 12V

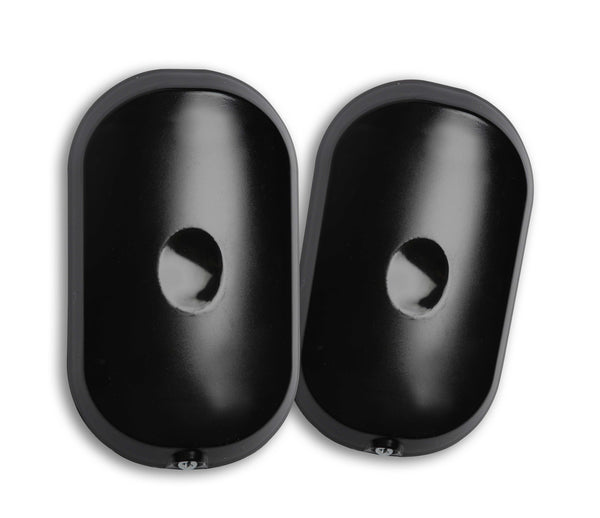

  • 1 pair of photocells ( safety beam)

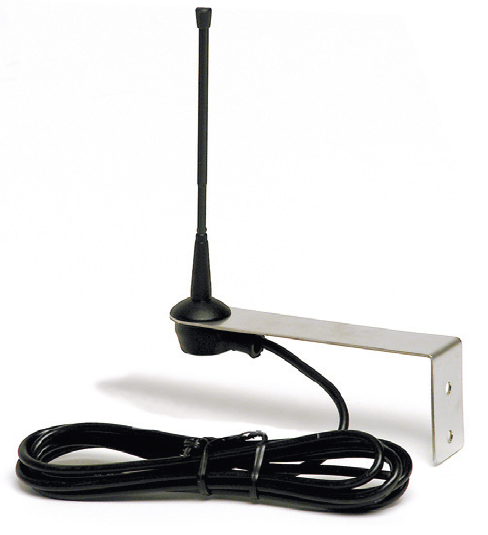

  • 1 external antenna

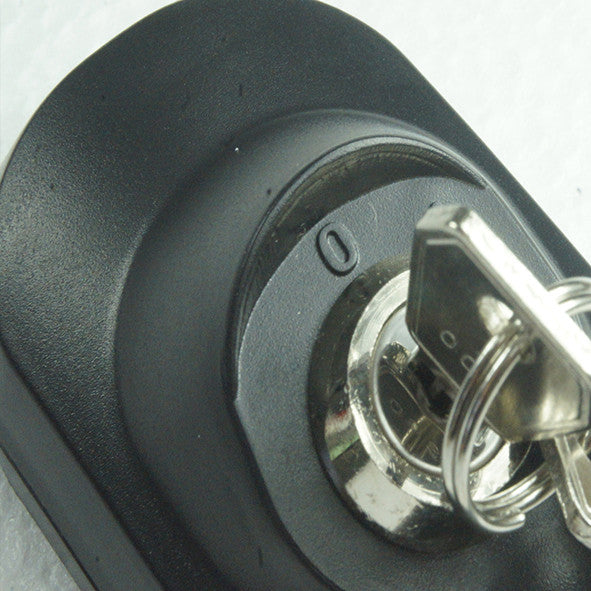

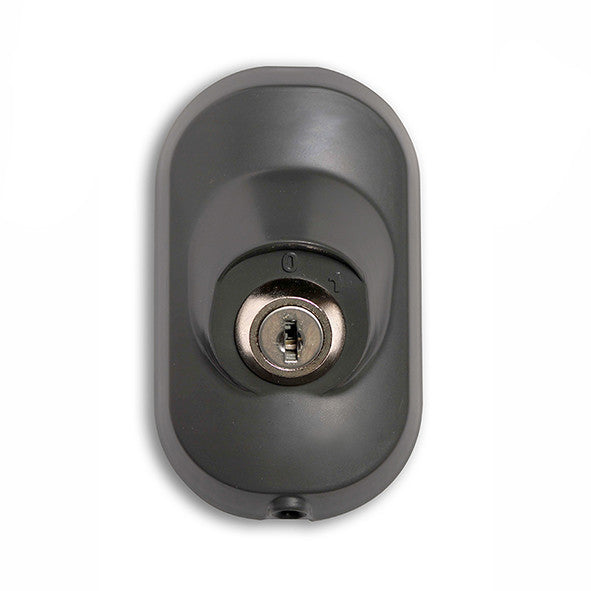

  • 1x SW5000 - key switch
  • 1x key for manual emergency release
  • 1x instruction manual

obstacle detection safety system guarantees maximal safety of use to your family

SELF LOCK TECHNOLOGY

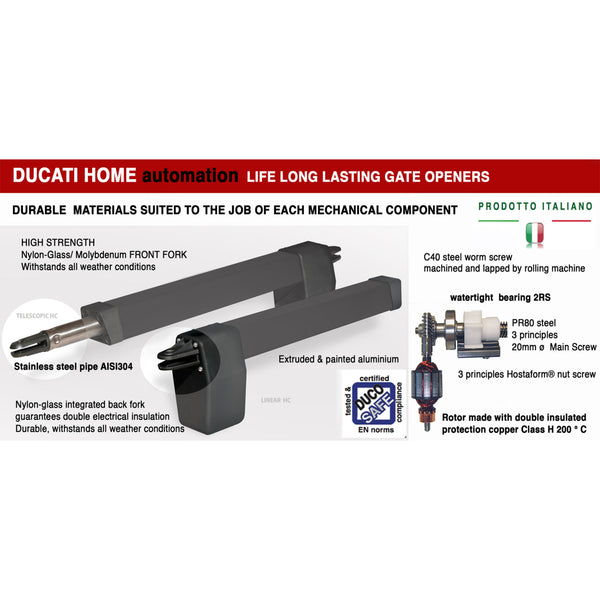

The self-locking properties of the spindle increase the protection against a dangerous and unauthorised “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

  • Ideal for a safe, quick and easy  installation: the system works in DC current and is electrocution risk-free.
  • Possibility of connecting an external timed courtesy light (example: garden light)
  • 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
  • Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
  •  Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
  • Easy  self-storing  of the remotes controls by pushing one button
  • Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.
  • Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
  • Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
  • After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.

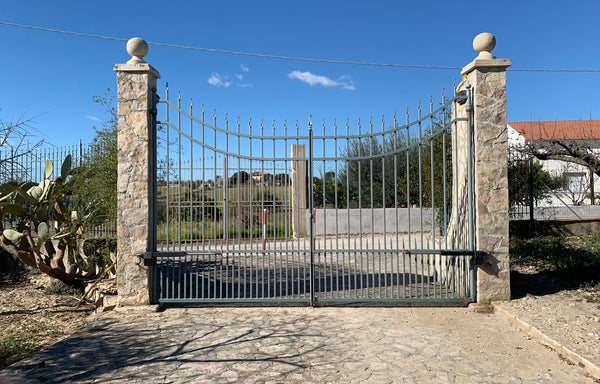

  • The gate is automatically locked in closed position (irreversibile system).
  •  Electro-lock is not needed, but recommended for wing longer than 2,8m each. This opener is compatible with ac 12V electric-lock ( WARNING: electrolock is not compatible in case the opener is powered by back-up battery)

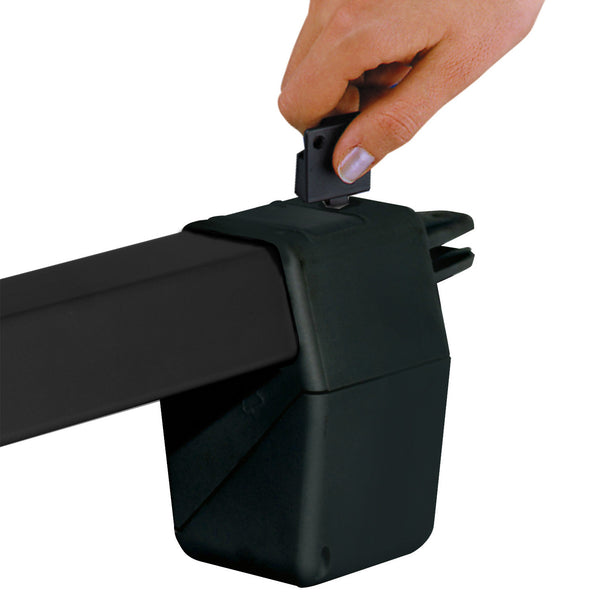

  • Manual release system by universal triangular key
  • Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request

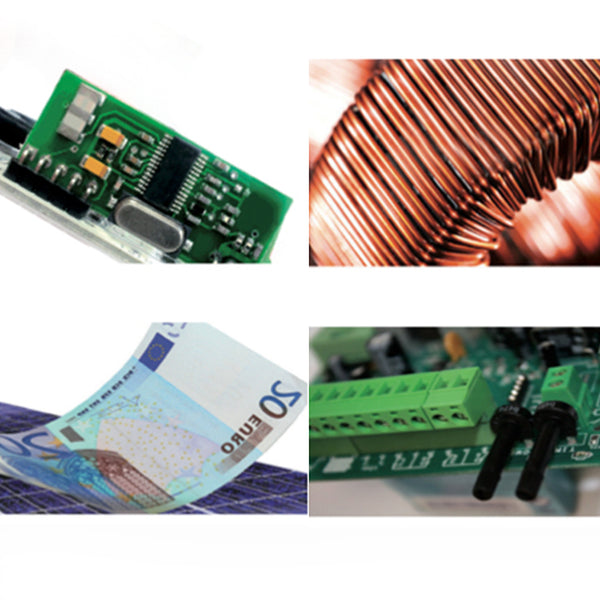

  • Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

ACTUATOR  TECHNICAL DATA

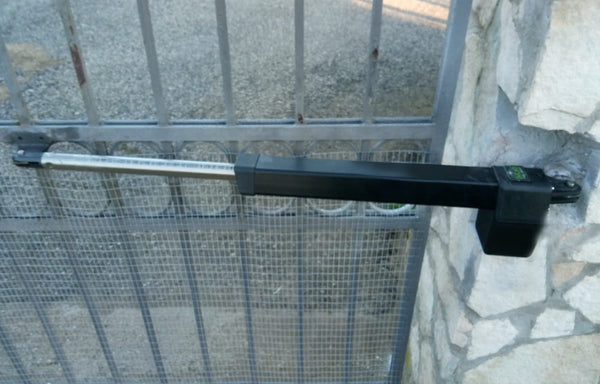

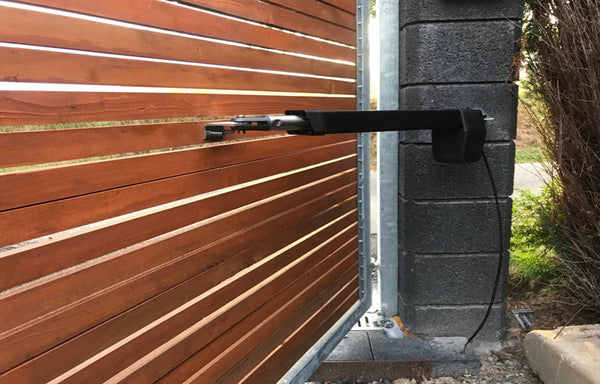

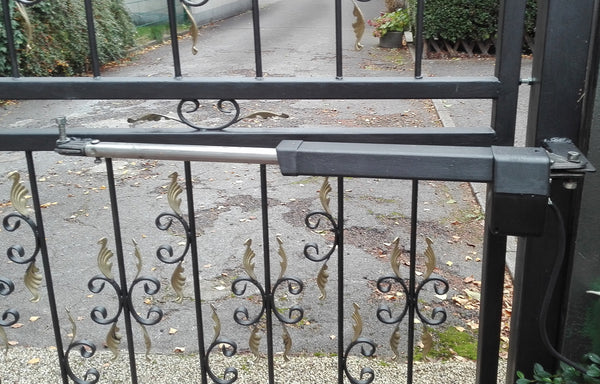

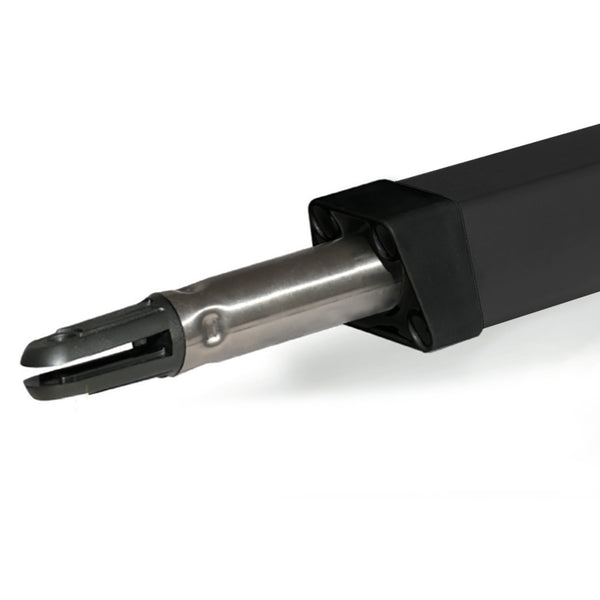

ELECROMECHANICAL TELESCOPIC  ACTUATOR HC412


Motor power supply

12V
dc motor 60W
max pushing & power 1200N
Stroke 400mm
motor speed 1,5 cm/sec
telescopic actuator
working cycles limit continuous use/ no limits
working temperature -20°C/+50°C
max wing length

3,5m/11,4ft   each leaf

max.wing weight

350kg/700lb each leaf

max. opening angle

137°

automatic wing lock  √ irreversible actuator
manual release system √ by triangular key
Compatible with  gate opening towards outside √

NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical stop limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC412 in "FC" version are featured with on-board mechanical limits for the open wing position.





CTH42 ELECTRONIC BOARD TECHNICAL DATA


Main power supply

230-240V /50-60Hz or (110V/60Hz) (both variant of toroidal transformer are available. Select the desired version while ordering)
toroidal transformer's Watts 105W
protection fuse √10AF
transformer protection fuse 0,8AT (1,2AT for 110V transformer)
use on single or double wing gate
output services 12V
stand-by power consumption 12mA
radio receiver 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening)
remote controls channels storage capacity 10 codes
radio transmission protocol DUCATI rolling code
radio frequency 433,92MHz
remote control automatic learning
On board antenna
external antenna input
automatic closure working mode √ with adjustable pause time up to 100 sec.
step by step working √ one pulse to open; one pulse to close
motor power adjustment √ by potentiometer
Obstacle detection safety system(DUCO SAFE) obstacle detection
In compliance with EU-CE norms
timerized courtesy light output √ max 10W 12V lamp
flashing light output √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output √ ac(warning the electric lock is incompatible with/while the board is powered by back-up battery)
safety beam-photocells input (NC contact) √ NC normally closed contact
A full cycle START input(NO contact)
pedestrian cycle START input ( N contact)
output for optional additional back-up battery charge management & module CMBAT


CLICK HERE to download the general instruction manual

HC412 actuator installation diagram

CTH42 Manual electronic board

6203Roll remote control instructions

cth42 video manual

Watch the CTH42 installation video


Opiniones de clientes

Based on 8 reviews Escribe una reseña
BAT 0712

BAT 0712

Accesorios

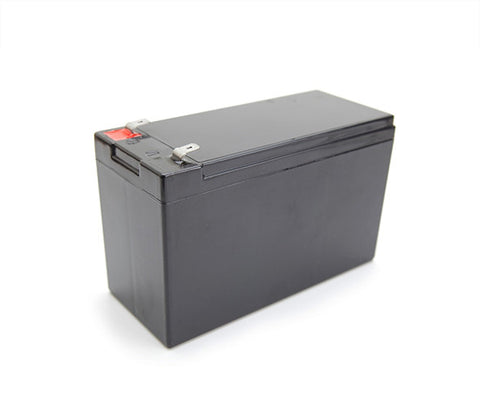

  • 12V 7A lead-acid sealed battery Extra slim model
  • Lead acid Capacity: 7Ah Volts: 12 Dimensions 6,5cm W x 15cm L x 9 cm H
€ 35.00EUR
Más información
CMBAT 2.0 (New version!)

CMBAT 2.0 (New version!)

Accesorios

  • Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel
  • Compatible with electronic board model CTH42, CTH41, ( swing gate opener) & CTH43 ( sliding gate opener)
€ 32.00EUR
Más información
PULT 6203 R

PULT 6203 R

Accesorios

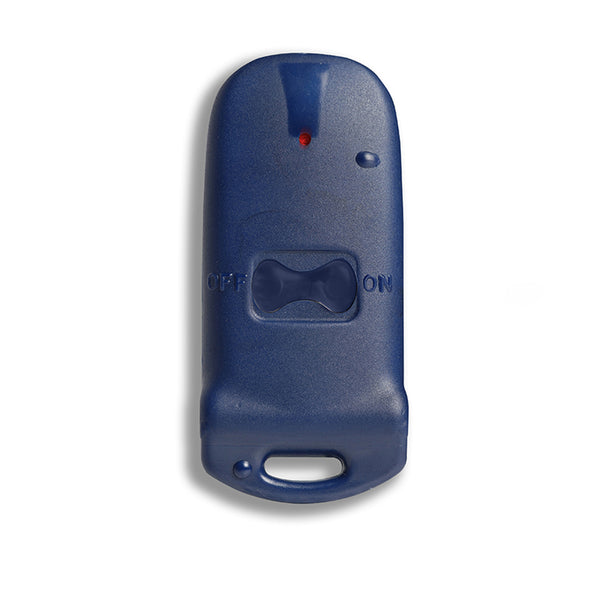

  • Rolling coded 2 buttons remote control
€ 32.00EUR
Más información
RIXY 6040 R

RIXY 6040 R

Accesorios

  • Rolling Coded 4 channels radio receiver
  • Storage capacity up to 30 remote controls buttons each channel for a total storage capacity of 100 remote controls
€ 99.00EUR
Más información
RIXY 6043

RIXY 6043

Accesorios

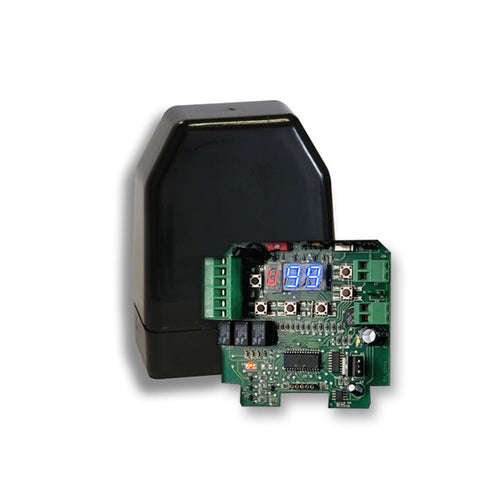

  • DUCATI Rolling coded Radio Receiver
€ 146.00EUR
Más información
SW6500

SW6500

Accesorios

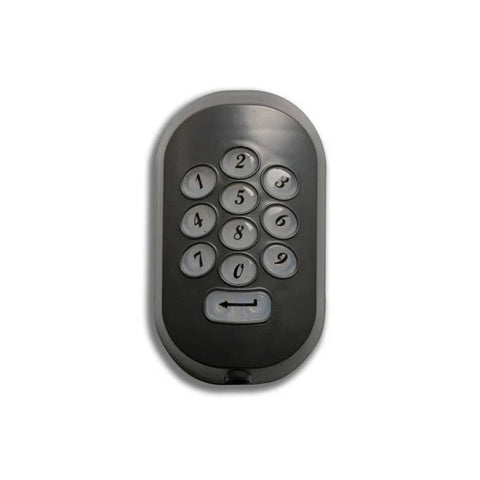

  • Radio rolling coded 1 channel KEYPAD With this radio key pad you can open your gate from a distance of 30m by digiting a 4 digit secret combination
